Product Summary

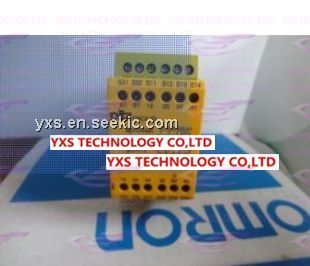

The PNOZ X3 is an Emergency stop relay and safety gate monitor in accordance with VDE 0113, 11/98, EN 60204-1, 12/97 and IEC 204-1, 11/98, safety component in accordance with the Lift Directive 95/16/EC and EN 81-1/1998.

Parametrics

PNOZ X3 absolute maximum ratings: (1)Supply Voltage: AC 24-240 V, DC 24 V; (2)Tolerance: 85 to 110 %; (3)Power Consumption: Approx.2.5 W/5 VA; (4)Voltage and Current at the Input and Reset Circuits and Feedback Control Loop: 24 VDC, 35 mA; (5)Switching Capability in accordance with EN 60947-4-1, 10/91: AC 240 V/8 A/2000 VA, DC 24 V/8 A/200 W; (6)Switching Capability in accordance with EN 60947-5-1, 10/91 (DC13: 6 cycles/min.): AC 230 V/5 A, DC 24 V/6A; (7)Semiconductor Outputs: 24 VDC/20 mA, short-circuit protected; (8)External Supply Voltage: 24 VDC ±20 %; (9)Recovery Time: Approx. 1 s; (10)Max. Supply Interruption before De-energisation: Approx. 25 ms; (11)Environmental Data Ambient Temperature: -25 to +55℃.

Features

PNOZ X3 features: (1)Monitored manual or automatic reset can be selected; (2)1 semiconductor output (K1/K2); (3)Each AC unit can be operated with 24 VDC; (4)Safety gate function with N/C-N/O combination; (5)Only dual-channel operation will detect shorts across the input contacts.

Diagrams

PNOZ X3 block diagram
