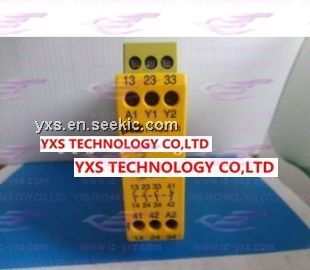

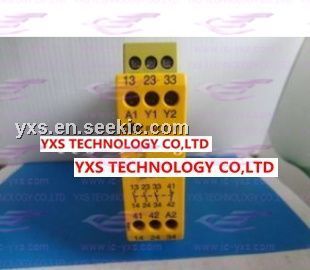

Product Summary
The PNOZ X1 is an Emergency stop relay and safety gate monitor in accordance with VDE 0113, 11/98, EN 60204-1, 12/97 and IEC 204-1, 11/98.
Parametrics
PNOZ X1 absolute maximum ratings: (1)Supply Voltage: AC 24 V, DC 24 V; (2)Tolerance: 85 to 110 %; (3)Power Consumption: Approx. 2 W/2 VA; (4)Voltage and Current at the Input and Reset Circuits and Feedback Control Loop: 24 VDC, 20 mA; (5)Switching Capability in accordance with EN 60947-4-1, 10/91: AC 240 V/5 A/1200 VA, DC 24 V/4 A/100 W; (6)Switching Capability in accordance with EN 60947-5-1, 10/91 (DC13: 6 cycles/min.): AC 230 V/5 A, DC 24 V/4A; (7)Delay-on Energisation: Max. 150 ms; (8)Delay-on De-energisation: Max. 100 ms; (9)Recovery Time: Approx. 1 s; (10)Max. Supply Interruption before De-energisation: Approx. 10 ms.
Features
PNOZ X1 features: (1)Single-channel operation; (2)lSupply voltage: 24 VAC/DC; (3)3 N/O and 1 N/C; (4)22.5 mm width.
