Product Summary

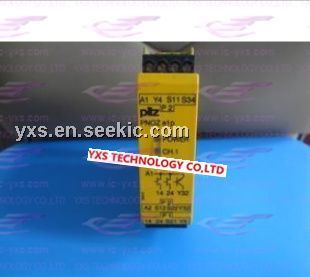

The PNOZ E1P is an Emergency stop relay and safety gate monitor in accordance with VDE 0113-1, 11/98, EN 60204-1, 12/97 and IEC 204-1, 11/98.

Parametrics

PNOZ E1P absolute maximum ratings: (1)Supply voltage: 24 VDC; (2)Tolerance: 80 to 125 %; (3)Power consumption no load: 2 W; (4)Residual Ripple DC: 20 %; (5)Voltage and current at input and reset circuits and feedback control loop: 24 VDC, 5 mA; (6)auxiliary output and test pulse outputs: 24 VDC/0.5 A; (7)Delay-on energisation: manual reset 180 ms, automatic reset 100 ms; (8)Delay-on de-energisation: max. 35 ms; (9)Max. Supply Interruption before de-energisation: max. 20 ms; (10)Environmental Storage temperature: -25 to 70℃.

Features

PNOZ E1P features: (1)Monitored manual or automatic reset can be selected; (2)2 safe semiconductor outputs; (3)1 auxiliary semiconductor output; (4)Auxiliary output can also be used as a diagnostic output; (5)Option for detecting shorts across the input contacts; (6)Applications in accordance with EN 954-1, 07/96, category 2, 3 or 4; (7)Self-test after UB is supplied; (8)Continuous self-monitoring; (9)Regular switch-off test of the safety outputs.

Diagrams

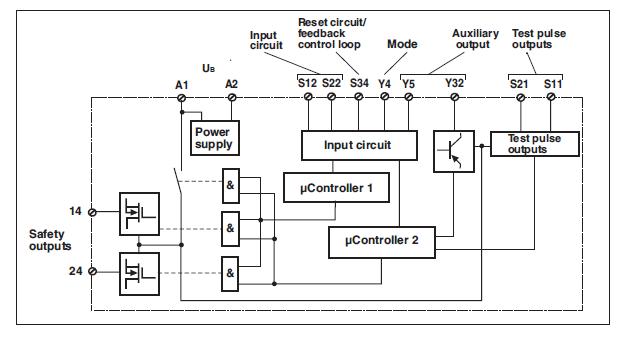

PNOZ E1P block diagram
