Product Summary

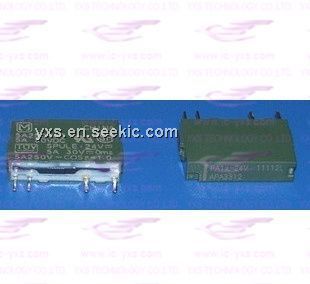

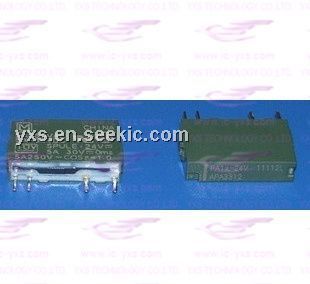

The PA1A-24V is a kind of Slim Power Relay.Typical applications include: (1)Industrial equipment, office equipment; (2)Measuring devices and test equipment; (3)Interface relays for programmable controllers; (4)Output relays in small devices such as timers, counters, sensors, and temperature controllers.
Parametrics
PA1A-24V absolute maximum ratings: (1)Contact Form: 1 Form A (SPST-NO); (2)Coil Voltage: 24 V; (3)Coil Resistance: 3.2 kOhms; (4)Coil Current: 7.5 mA; (5)Power Consumption: 180 mW.
Features
PA1A-24V features: (1)Slim size (width 5 mm, height 12.5 mm) permits higher density mounting; (2)Nominal operating power: higher sensitivity of 120 mW; (3)Control from low level loads to 5 A; (4)High surge breakdown voltage 4000 V and high breakdown voltage 2000 V; (5)Outstanding vibration and shock resistance; (6)Sealed construction allows automatic washing; (7)Complies with safety standards; (8)Sockets are available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA1A-24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 24VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
PA1A-12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 12VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
 |
PA1A-12V-Y1 |
Panasonic Electric Works |
Relay Sockets & Hardware 1 Form A 12V 3A 250VAC 3A 30VDC |
Data Sheet |
|
|
||||||||||||
|
PA1a-18V |
Panasonic Electric Works |
General Purpose / Industrial Relays 1 Form A 18V 3A 250VAC 3A 30VDC |
Data Sheet |
|
|
||||||||||||
|
PA1A-24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 24VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
|
PA1A-5V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 5VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
|
PA1A-5V-Y1 |
Panasonic Electric Works |
Relay Sockets & Hardware 1 Form A 5V 3A 250VAC 3A 30VDC |
Data Sheet |
|
|
||||||||||||
