Product Summary

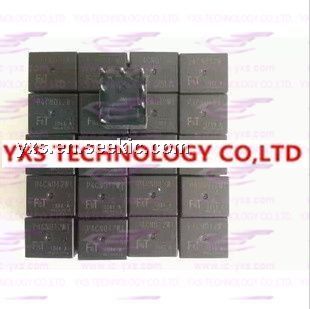

The P4CN012W1 is a Compact power twin relay.

Parametrics

P4CN012W1 absolute maximum ratings: (1)nominal coil voltage: 12VDC; (2)coil resistance (±10% at 20℃): 240Ω; (3)must operate voltage: 7.3 VDC (at 20℃), 9.2 VDC (at 85℃); (4)must release voltage (at 20℃): 1.0VDC; (5)coil power at nominal voltage: 0.6W; (6)thermal resistance (approx.): 73℃/W.

Features

P4CN012W1 features: (1)Compact for high density packaging (60% volume of previous generation FBR512); (2)High contact capacity with proven contact material (100,000 operations, 14 V, 25 A achieved, even with reduced size); (3)Coil power savings: (600mW nominal achieved with state-of-the-art magnetic analysis/design); (4)125℃ version is available; (5)Ease of PCB layout (all terminals on perimeter, coil and contact terminals separated); (6)Pin compatible with low acoustic noise relay, FTR-P2; (7)Optional over-voltage circuit breaking capability (0.6mm gap, contact our representative); (8)Packaging for auto-insertion (tube packing, 30 relays/tube); (9)RoHS compliant since date code: 0624.

Diagrams

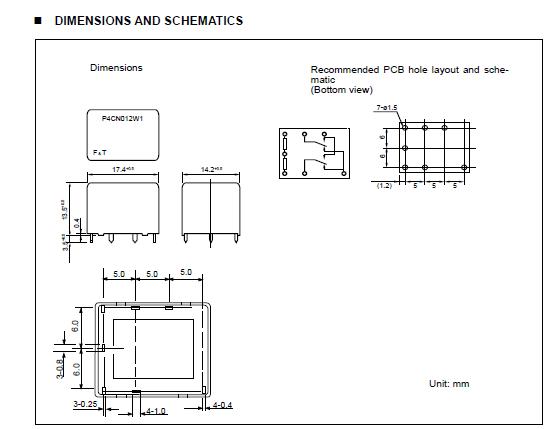

P4CN012W1 package dimensions
