Product Summary

The OSA-SS-212DM5-12VDC is a 2 pole miniature power PC board relay. And it can be used in (1)Door locking systems; (2)Immobilizers; (3)Seat adjustment motors; (4)Seatbelt pretensioner; (5)Sunroof and window motors.

Parametrics

OSA-SS-212DM5-12VDC absolute maximum ratings: (1)Arrangements: 2 Form A (DPST-NO); (2)Material: Ag-GS Alloy (DM3) and AgSnO (DM5); (3)Max. Switching Rate: 300 ops./min. (no load) and 30 ops./min. (rated load); (4)Must Operate Voltage: 75% of nominal voltage or less; (5)Must Release Voltage: 10% of nominal voltage or more; (6)Operate Time:20 ms max.; (7)Release Time: 10 ms max..

Features

OSA-SS-212DM5-12VDC features: (1)Meet UL TV-3 and CSA TV-4 rating available for DM5 type; (2)2 Form A contact arrangements; (3)Immersion cleanable, sealed version available; (4)Meet 3,000V dielectric voltage between coil and contacts; (5)Meet 5,000V surge voltage between coil and contacts (1.2 / 50μs).

Diagrams

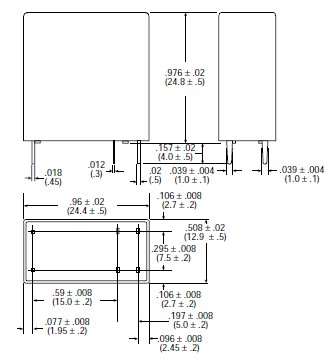

OSA-SS-212DM5-12VDC dimension figure
