Product Summary

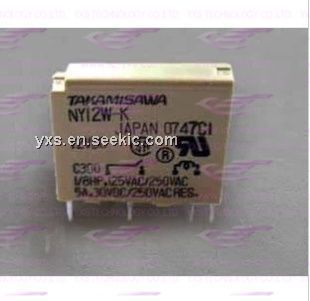

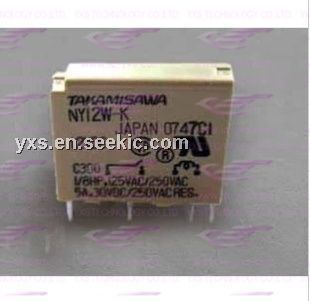

The NY12W-K is a power relay.

Parametrics

NY12W-K absolute maximum ratings: (1)Coil rated voltage: 4.5 to 2 VDC; (2)Resistance (initial): L Max. 30 mΩ at 6 VDC, 1 A; (3)Contact rating: 5A, 250VAC / 30VDC; (4)Max. carrying current: 5A; (5)Max. switching voltage: 270VAC / 150 VDC; (6)Max. switching power: 750VA / 90W; (7)Max. switching current: 5A; (8)Min. switching load *: 1 mA, 5 VDC.

Features

NY12W-K features: (1)Slim type with 5 mm thickness: Suited for high density mounting; (2)Low power consumption and high sensitivity: Nominal coil power: 120 mW, Operating power: 54 mW; (3)UL, CSA, VDE recognized; (4)Conforms to IEC61010, 61131; (5)High insulation: Surge voltage: 5,080V, Dielectric strength: 3,000VAC (coil and contacts); (6)SIL pitch terminals; (7)Plastic sealed type, RTIII; (8)Compatible with solid state I/O module type SN in size and pin (terminal) arrangement; (9)Environmentally friendly cadmium free contact type; (10)RoHS compliant.

Diagrams

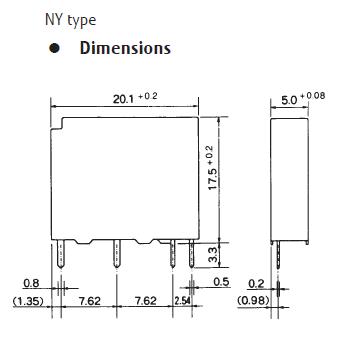

NY12W-K package dimensions
