Product Summary
The K2CU-F20A-FGS is a kind of Heater Element Burnout Detector.
Parametrics
K2CU-F20A-FGS specifications: (1)Control supply voltage: 100, 110, 200, 220 VAC; (2)Rated frequency: 50/60 Hz; (3)Carry current: 1.25 times as large as each model’s maximum operating current; (4)Operating voltage range: 85% to 110% of control supply voltage; (5)Voltage fluctuation compensation range: 85% to 110% of control supply voltage; (6)Operating current: 4 to 10 A, 8 to 20 A, 16 to 40 A, 32 to 80 A (continuously variable); (7)Operate time: 0.5 s max. (when current changes from 150% to 0%); (8)Gate input voltage range (for models with gate input terminals) 5 to 30 VDC; (9)Control output: 2 A at 220 VAC, SPDT (cosφ = 0.4); (10)Power consumption: Input: 0.5 VA max; Power supply: 5 VA max.
Features
K2CU-F20A-FGS features:(1)Accurately detects a burned heater element or elements incorporated by a molding machine or packing machine and outputs an alarm signal; (2)Precisely singles out the burned element even if one heater element among several heater elements has been burned out; (3)Applicable to small- to large-capacity heater elements; (4)All K2CU-F large-capacity, built-in current transformer models work with both single-phase and three-phase heaters; (5)Voltage fluctuation compensation function eliminates false alarms due to variations in the supply voltage.

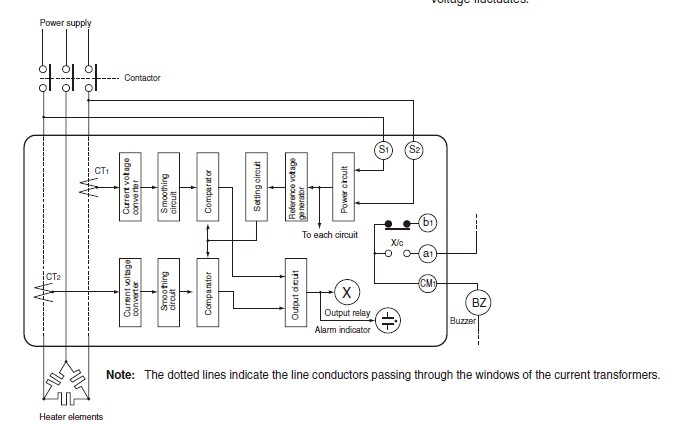

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 K2CU-F20A-FGS |
Omron Industrial |
Detector Switches Heater Fault Detector |
Data Sheet |
|
|
||||||||||||
