Product Summary

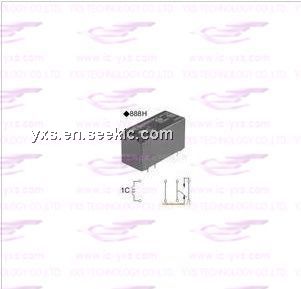

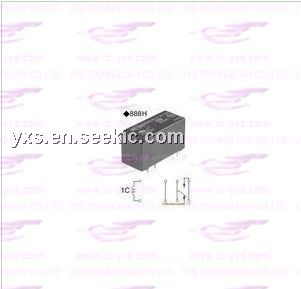

The HX2-12 is designed as a compact & slim 2 Form C non-polarized relay.
Parametrics
HX2-12 absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 100 mΩ; (3)Contact material: Gold-clad silver alloy; (4)Temperature rise: Max. 60°C; (5)Operate time (at nominal voltage): Max. 6 ms; (6)Release time: Approx. 5 ms.
Features
HX2-12 features: (1)Compact size of (W) 7.4(L) 15.0(H) 9.4 mm (W) .291L) .591(H) .370 inch; (2)Surge withstand voltage of 1,500 V (between contact and coil) conforms to FCC Part 68; (3)High-density mounting is possible; (4)High reliability. The use of a gold-clad bifurcated structure for the movable contacts, and a low gas material for the forming materials and coil wiring ensures high contact reliability.
