Product Summary

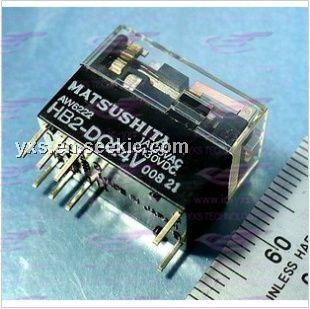

HB2E-24V is a kind of subminature DIP relay.Typical applications include: Office machines, electrical home appliances, telecommunications equipment, personal computers.
Parametrics
HB2E-24V absolute maximum ratings: (1)Arrangement: 1 Form C, 2 Form C; (2)Contact material: Gold-clad over silver-nickel; (3)Initial contact resistance, max. (By voltage drop 6 V DC 1A): 100 mW; (4)Max. switching power: 125 VA, 60 W; (5)Max. switching voltage: 125 V AC, 30 V DC; (6)Max. switching current: 1 A AC, 2 A DC.
Features
HB2E-24V features: (1)Small size for increased packaging density; (2)Sensitive - Very low operating power; (3)Simple mechanism for stable quality - only 7 pieceparts; (4)DIP matching 16 pin IC socket; (5)Contact capacity - 1 A 125 V AC, 2 A 30 V DC.
Diagrams
