Product Summary

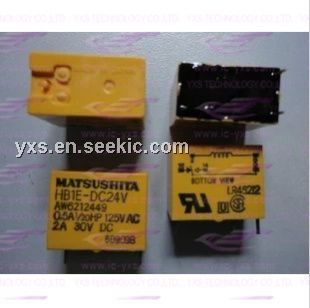

The HB1E-DC5V is designed as a cost saving subminature DIP relay.
Parametrics
HB1E-DC5V absolute maximum ratings: (1)Arrangement: 1 Form C, 2 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 100 mΩ; (3)Contact material: Gold-clad silver alloy; (4)Temperature rise: Max. 45°C or Max. 60°C; (5)Operate time (at nominal voltage): Max. 15 ms; (6)Release time: Approx. 8 ms.
Features
HB1E-DC5V features: (1)Small size for increased packaging density; (2)Sensitive - Very low operating power; (3)Simple mechanism for stable quality - only 7 pieceparts; (4)DIP matching 16 pin IC socket; (5)Contact capacity - 1 A 125 V AC, 2 A 30 V DC.

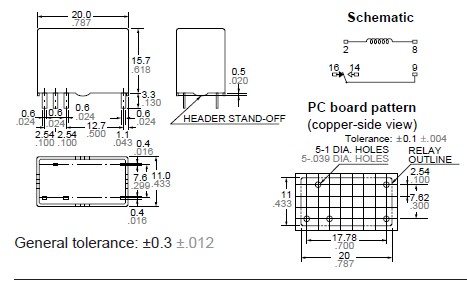

Diagrams
