H5CX-A11D-N

H5CX-A11D-N, time delay relay, 24-VAC, 50/60 Hz, 24 VDC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $213.00~319.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	319.00 / Piece
10 ~ 20 :	266.00 / Piece
30 ~ 40 :	213.00 / Piece

PartNumber:: H5CX-A11D-N

Brand:: Omron Electronics LLC - OMRON | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-20

From Other Seller

Part Number:H5CX-A11D-N
US $213.00 - 319.00
Quantity:

piece

Product Summary

The H5CX-A11D-N is a time delay relay.

Parametrics

H5CX-A11D-N absolute maximum ratings: (1)Power supply voltage: 100 to 240 VAC 50/60 Hz; (2)Operating voltage: 85% to 110% of rated supply voltage (90% to 110% at 12 to 24 VDC); (3)Timer mode Elapsed time (Up), remaining time (Down) (selectable); (4)Reset system Power reset (depending on output mode), external reset, manual reset, automatic reset (depending on output mode); (5)Storage temperature: -25 to 70°C; (6)Operating temperature range: -10 to 55°C (-10 to 50°C if counters are mounted side by side) (with no icing or condensation); (7)Operating humidity range: 25% to 85%.

Features

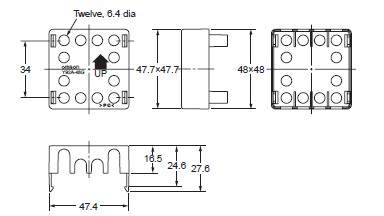

H5CX-A11D-N features: (1)Short body with depth of only 59 mm (for 24-VAC / 12 to 24-VDC Models with Screw Terminals); (2)Character height of 12 mm for better readability (on models with 4 digits); (3)The present value display characters can be switched between red, green, and orange; (4)Power supply circuit and input circuits are isolated for safety and reliability; (5)New set value limit and output counter functions have been added; (6)Front Panel can be changed to white or light gray; (7)Models with instantaneous contact output added to the series.
