Product Summary
The H5CL-AD is a digital timer.
Parametrics
H5CL-AD absolute maximum ratings: (1)Digits 4 digits (zero suppress method); (2)Display modes Up (increment) and Down (decrement) (selectable); (3)Input signals Start, gate, reset, and key protection; (4)External power supply: 50 mA at 12 VDC (±10%); (5)Key protection input Response time: 1 s max.; (6)Power reset Min. power opening time: 0.5 s (excluding F (accumulative operation) mode); (7)Start, reset, gate inputs Min. pulse width: 1 ms/20 ms (selectable, same for all three inputs); (8)Ambient humidity Operating: 35% to 85%.
Features
H5CL-AD features: (1)Water- and dust-protected for severe environments; (2)Large, high-visibility LED displays with a height of 12 mm; (3)Simple setting with Increment and Decrement Keys; (4)Conforms to EMC standards; (5)Six-language instruction manual provided.

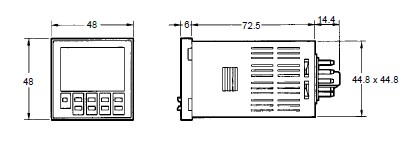

Diagrams
