Product Summary
The H3DR-H is a solid-state timer.
Parametrics
H3DR-H absolute maximum ratings: (1)Power supply voltage : 24 to 240 VAC/DC, 50/60 Hz; (2)Allowable voltage fluctuation range: 24 to 240 VAC/DC: 85% to 110% of rated voltage; (3)Ambient operating temperature: -20 to 55°C (with no icing); (4)Storage temperature: -40 to 70°C (with no icing); (5)Insulation resistance: 100 MΩ min. at 500 VDC.
Features
H3DR-H features: (1)A wide AC/DC power supply range (24 to 240 VAC/DC); (2)All sub-series include models with 12-VDC power supply; (3)G-type Models (H3DK-G)now include model with 240 to 440- VAC power supply; (4)UL*3, CSA, and CCC*2 certification and EN 61812-1 compliance. CE Marking; (5)EMC (EN 61812-1)compliance for application in heavy industrial, residential, commercial, or light industrial environments; (6)Finger-safe terminal block and captive screws according to EN 50274.

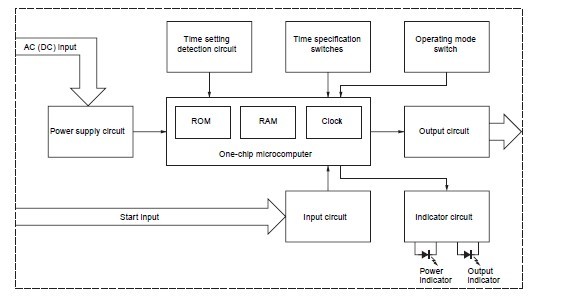

Diagrams
