Product Summary

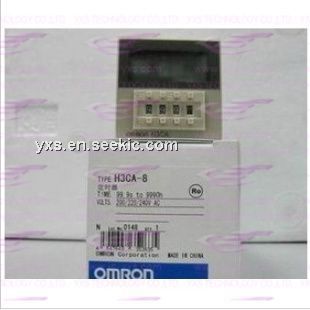

The H3CA-8 is a solid-state timer.

Parametrics

H3CA-8 absolute maximum ratings: (1)Supply voltage: AC-24 V, 100/110/120 V, 200/220/240 V; 50/60 Hz; (2)Repeat accuracy: ±0.3%, ±0.05 sec (includes variation due to voltage and temperature changes); (3)Setting error: ±0.5%, ±0.05 sec; (4)Resetting system: Power-OFF; (5)Resetting time: 0.1 sec max.; (6)Indicators: Time Remaining (LCD bar graph), Output Status (LCD message); (7)Materials: Plastic case; (8)Mounting: Panel, track, surface; (9)Operating ambient temperature: -10° to 55°C (14° to 131°F).

Features

H3CA-8 features: (1)8 field-selectable operation modes; (2)Universal AC/DC supply voltage timers available; (3)Operations include ON-delay, Repeat cycle, Signal Interval/OFF-delay, Signal-OFF delay (I and II), Interval, Cycle and Signal ON-delay/OFF-delay; (4)Selectable no-voltage start, reset, gate and check inputs expand capabilities; (5)Time remaining LCD bar graph and LCD output status indicator; (6)Panel mounting adapters, sockets, and accessories may be ordered separately.

Diagrams

H3CA-8 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H3CA-8-AC100/110/120
H3CA-8-AC100/110/120
Omron Industrial
Stopwatches & Timers AC100/110/120
Data Sheet
0-1: $98.45
1-2: $95.49
2-5: $92.63
5-10: $89.85
10-25: $82.90
H3CA-8-AC200/220/240
H3CA-8-AC200/220/240
Omron Industrial
Stopwatches & Timers SOLID STATE TIMER
Data Sheet
0-1: $127.97
1-10: $116.34
10-25: $106.65
25-50: $98.44
H3CA-8DC24
H3CA-8DC24
Omron Industrial
Stopwatches & Timers Solid State Timer
Data Sheet
0-1: $97.25
1-10: $90.86
10-25: $87.98
25-50: $86.38
H3CA-8H AC100/110/120
H3CA-8H AC100/110/120

RELAY DIGITAL SP 100/110/120VAC
Data Sheet
0-1: $79.39
1-25: $73.51
25-50: $68.61
50-100: $63.71
H3CA-8H AC200/220/240
H3CA-8H AC200/220/240
Omron Industrial
Stopwatches & Timers Solid State Timer
Data Sheet
0-1: $93.44
1-10: $87.41
10-25: $85.96
25-50: $83.83
H3CA-8H DC12
H3CA-8H DC12
Omron Industrial
Stopwatches & Timers Solid State Timer
Data Sheet
0-1: $113.13
1-10: $104.33
10-25: $97.42
25-50: $93.65
H3CA-8H-AC100/110/120
H3CA-8H-AC100/110/120
Omron Industrial
Stopwatches & Timers DPDT 100-120VAC 8PIN .1S-9990HRS ON-DELAY
Data Sheet
0-1: $75.23
1-5: $74.32
5-10: $71.05
10-25: $67.76
H3CA-8H-DC12
H3CA-8H-DC12
Omron Electronics Inc-IA Div
SOLID STATE TIMER
Data Sheet
1-1: $89.70
