Product Summary

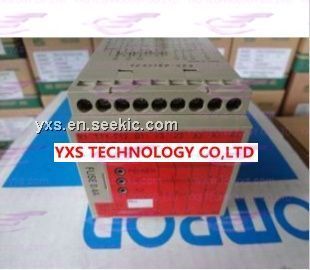

The G9S-301 is one kind of ultra slim safety relay unit. And it is the ideal for safety door and emergency stop switch circuits for machines in European countries.
Parametrics
G9S-301 absolute maximum ratings: (1)Input voltage/frequency: 24 VDC; (2)Supply voltage range: 85% to 110% of rated power supply voltage; (3)Fuse protection: none; (4)Contact form of safety circuit: DPST-NO; (5)Insulation resistance (at 500 VDC): 100 MW min. between control circuit and the safety and auxiliary circuits, between the safety circuits and auxiliary circuits, and between safety circuits; (6)Rated insulation voltage: 250 V.
Features
G9S-301 features: (1)Two-pole slim models that are only 22.5 mm wide, three-pole models that are only 67.5 mm wide, and five-pole models that are only 90 mm wide are available; (2)OFF-delay models are available; (3)Incorporates LED indicators for monitoring built-in relays; (4)Finger-protection construction; (5)Both DIN track mounting and screw mounting possible (two-pole models); (6)Conforms to EN60204-1 (IEC204-1), EN954-1, and approved by BIA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G9S-301 AC100 |
Omron Electronics |
Safety Relays SAFE RELAY 3PST-NO AC100 |
Data Sheet |
Negotiable |
|
||||||||||
|
G9S-301 AC120 |
Omron Electronics |
Safety Relays Safe Relay 3pst-no AC120 |
Data Sheet |
Negotiable |
|
||||||||||
|
G9S-301 AC200 |
Omron Electronics |
Safety Relays SAFE RELAY 3PST-NO AC200 |
Data Sheet |
|
|
||||||||||
|
G9S-301 AC24 |
Omron Electronics |
Safety Relays SAFE RELAY 3PST-NO AC24 |
Data Sheet |
Negotiable |
|
||||||||||
|
G9S-301 AC240 |
Omron Electronics |
Safety Relays SAFE RELAY 3PST-NO AC240 |
Data Sheet |
Negotiable |
|
||||||||||
 |
G9S-301 DC24 |
Omron Electronics |
Safety Relays SAFE RELAY 3PST-NO DC24 |
Data Sheet |
Negotiable |
|
||||||||||
