Product Summary
The G9SX-NS202-RT is a Safety Relay Ideal for Safety Door and Emergency Stop Switch Circuits. The G9SX-NS202-RT is designed specifically for use with the D40A, and with the G9SX-NSA you can also connect mechanical safety door switches. Among other features, it supports logical AND connections that enable partial stops. The G9SX-NS202-RT makes the most of D40A Switches.
Parametrics
G9SX-NS202-RT absolute maximum ratings: (1)Rated supply voltage: 24 V DC; (2)Operating voltage range: -15% to 10% of rated supply voltage; (3)Rated power consumption: 3 W max.; (4)Operating voltage: 20.4 VDC to 26.4 VDC; (5)Internal impedance: approx. 2.8 kΩ; (6)Operating time (OFF to ON state): 100 ms max.; (7)Response time (ON to OFF state): 15 ms max.; (8)ON-state residual voltage: 3.0 V max. (safety output, auxiliary output); (9)OFF-state leakage current: 0.1 mA max. (safety output, auxiliary output); (10)Reset input time (Reset button pressing time): 100 ms min.; (11)Insulation resistance: 20 MΩ min. (at 100 VDC); (12)Vibration resistance: 10 to 55 to 10 Hz, 0.375 mm single amplitude; (13)Ambient operating temperature: -10℃ to 55℃ (no icing or condensation); (14)Ambient operating humidity: 25% to 85%.
Features
G9SX-NS202-RT features: (1)Easy-to-see 2-Color Indicator; (2)Small Actuator; (3)Mount from Either Side; (4)Save Labor with Connector and Reduce Inventory; (5)Connect Up to 30 Switches to a Single Controller.

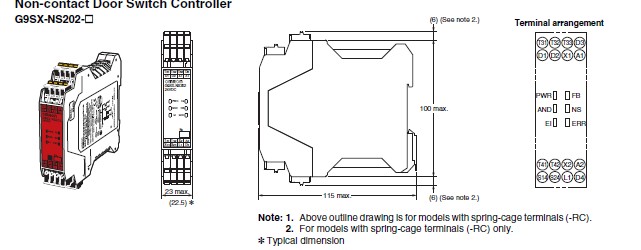

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G9SX-NS202-RT DC24 |
Omron Electronics |
Safety Relays |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
G9SX-BC202-RT DC24 |
Omron Industrial |
Safety Relays 2 Channel Emergency Stop Switch SW Inp |
Data Sheet |
|
|
||||||||||||
|
G9SX-NS202-RT DC24 |
Omron Electronics |
Safety Relays |
Data Sheet |
Negotiable |
|
||||||||||||
|
G9SX-NSA222-T03-RT DC24 |
Omron Industrial |
Safety Relays Non Contact DR SW Controller 2 Out |
Data Sheet |
|
|
||||||||||||
