Product Summary

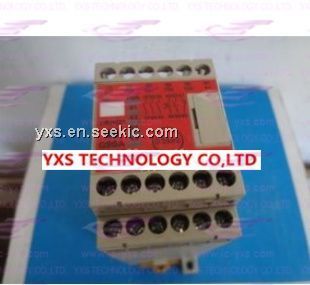

The G9SA-321-T15 is a safety relay unit.

Parametrics

G9SA-321-T15 absolute maximum ratings: (1)Power supply voltage: 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC and 100 to 240 VAC: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range 85% to 110% of rated power supply voltage; (3)Power consumption: 24 VAC/VDC: 2.8 VA/2.6 W max.; (4)Operating time: 30 ms max. (not including bounce time); (5)Vibration resistance: 10 to 55 Hz, 0.75-mm double amplitude; (6)Minimum permissible load (reference value): 5 VDC, 1 mA; (7)Ambient temperature Operating: 35% to 85%.

Features

G9SA-321-T15 features: (1)Several types of 45-mm wide Units are available: a 3-pole model, a 5-pole model, models with 3 poles and 2 OFF-delay poles; (2)17.5-mm wide Expansion Units with 3 poles and 3 OFF-delay poles are also available; (3)Simple expansion connection; (4)OFF-delay models have 15-step OFF-delay settings; (5)Conforms to EN standards (BG approval); (6)Approved by UL and CSA; (7)DIN-rail mounting or screw mounting.

Diagrams

G9SA-321-T15 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G9SA-321-T15
G9SA-321-T15

Omron Electronics

Safety Relays 3PST-NO 15S OFF-DELY

Data Sheet

0-1: $259.01
1-5: $235.62
5-10: $223.93
10-25: $220.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G9SA
G9SA

Other


Data Sheet

Negotiable
G9SA-301 AC100-240
G9SA-301 AC100-240

Omron Electronics

Safety Relays Safety Relay 100-240 AC

Data Sheet

0-1: $200.87
1-10: $194.90
10-25: $190.78
G9SA-301ACDC24
G9SA-301ACDC24

Omron Electronics

Safety Relays 24AC/DC 3PST-NO MAIN EMERGENCY STOP

Data Sheet

0-1: $190.32
1-5: $186.08
5-10: $179.67
10-25: $173.25
G9SA-321-T075
G9SA-321-T075

Omron Electronics

Safety Relays SLIM SAFE RELAY 3P-NO 7.5S DEL

Data Sheet

0-1: $337.59
1-10: $327.94
G9SA-321-T15
G9SA-321-T15

Omron Electronics

Safety Relays 3PST-NO 15S OFF-DELY

Data Sheet

0-1: $259.01
1-5: $235.62
5-10: $223.93
10-25: $220.58
G9SA-321-T30 AC/DC24
G9SA-321-T30 AC/DC24

Omron Electronics

Safety Relays

Data Sheet

Negotiable
