Product Summary

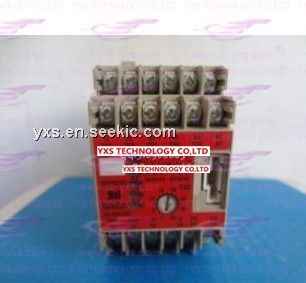

The G9SA-321-T075-F is one kind of safety relay unit.
Parametrics
G9SA-321-T075-F absolute maximum ratings: (1)Power supply voltage: 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC, 100 to 240 VAC: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated power supply voltage; (3)Power consumption: 24 VAC/VDC: 2.8 VA/2.6 W max. and 100 to 240 VAC: 11 VA max.; (4)Input current: 60 mA max.; (5)Rated load: 250 VAC, 5 A; (6)Rated carry current: 5 A.
Features
G9SA-321-T075-F features: (1)Several types of 45-mm wide Units are available: a 3-pole model, a 5-pole model, models with 3 poles and 2 OFF-delay poles; (2)17.5-mm wide Expansion Units with 3 poles and 3 OFF-delay poles are also available; (3)Simple expansion connection; (4)OFF-delay models have 15-step OFF-delay settings; (5)Conforms to EN standards (BG approval); (6)Approved by UL and CSA; (7)DIN-rail mounting or screw mounting.

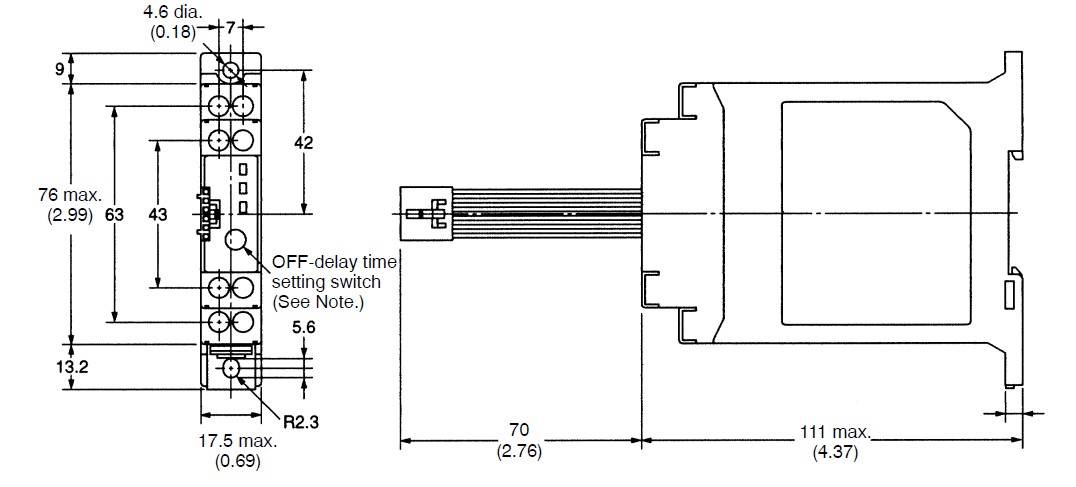

Diagrams
