G4Q-212S

G4Q-212S, ratchet relay, 2,000 VAC, 50 mΩ, 60 ms

Rated 5 Rating 5 | reviews | Write a review

Price:: US $36.00~54.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	54.00 / Piece
20 ~ 30 :	45.00 / Piece
30 ~ 40 :	36.00 / Piece

PartNumber:: G4Q-212S

Brand:: Omron Electronics LLC - OMRON | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-05

From Other Seller

Part Number:G4Q-212S
US $36.00 - 54.00
Quantity:

piece

Product Summary

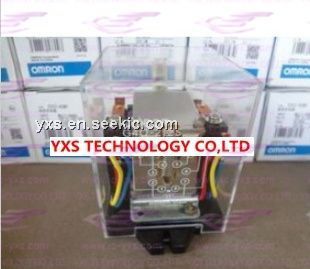

The G4Q-212S is a ratchet relay.

Parametrics

G4Q-212S absolute maximum ratings: (1)Contact resistance: 50 mΩ max.; (2)Operate time: 60 ms max.; (3)Max. operating frequency mechanical: 1,200 operations/hr; (4)Max. operating frequency electrical: 1,200 operations/hr (under rated load); (5)Insulation resistance: 100 MΩ min. (at 500 VDC); (6)Error rate: 1 A at 5 VDC (0.1 A at 5 VDC); (7)Ambient temperature: –10°C to 55°C (with no icing or no condensation); (8)Ambient humidity: 5% to 85%.

Features

G4Q-212S features: (1)Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor; (2)Positive operation is assured due to the unique ratchet mechanism; (3)Satisfies dielectric strength of 2,000 VAC; (4)Low power consumption (AC: approx. 6.4 VA; DC: approx. 3.9 W).
