Product Summary

The G3PE-545B is a single-phase solid state relay. And it can be used in heater applications.

Parametrics

G3PE-545B absolute maximum ratings: (1)Release time: 1/2 of load power source cycle + 1 ms max.; (2)Output ON voltage drop: 1.6 V (RMS) max.; (3)Leakage current: 10 mA max. (at 200 VAC); (4)Insulation resistance: 100 MΩ min. (at 500 VDC); (5)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min; (6)Vibration resistance: 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) (Mounted to DIN track); (7)Ambient storage temperature: -30 to 100°C (with no icing or condensation); (8)Ambient operating temperature: -30 to 80°C (with no icing or condensation).

Features

G3PE-545B features: (1)Snubber circuit provides excellent short-term surge absorption; (2)15A and 25A models have slim 22.5mm width; (3)Zero cross or fast turn on models; (4)DIN track or panel mounting possible; (5)LED indicator standard on all single phase models; (6)UL, CSA and TUV approved; (7)RoHS compliant.

Diagrams

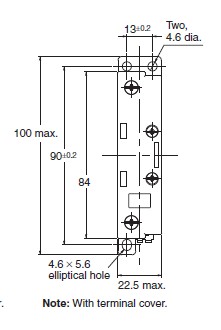

G3PE-545B dimension figure
