Product Summary
The G3PE-225B is a Compact, Slim-profile SSR with Heat Sinks and is a Solid State Contactor for Three-phase Heaters Reduced Installation Work with DIN Track Mounting.
Parametrics
G3PE-225B absolute maximum ratings: (1)Rated input operating voltage: 12 to 24 VDC; (2)Operating voltage range: 9.6 to 30 VDC; (3)Rated input current (impedance): 10 mA max. (24 VDC); (4)Must-operate voltage: 9.6 VDC max.; (5)Must-release voltage: 1 VDC min.; (6)Rated load current: 25 A (at 40℃); (7)Inrush current resistance (peak value): 220 A (60 Hz, 1 cycle); (8)Permissible I2t (reference value): 260A2s; (9)Applicable load (resistive load: AC1 class): 8.6 kW (at 200 VAC).
Features
G3PE-225B features: (1)RoHS compliant; (2)Surge pass protection improved surge dielectric strength for output currents. (OMRON testing); (3)Slim design with 3-phase output and built-in heat sinks; (4)DIN Track mounting types and screw mounting types are available; (5)All DIN Track mounting types mount to DIN Track (applicable DIN Track: TR35-15Fe (IEC 60715)); (6)Conforms to UL, CSA, and EN standards.

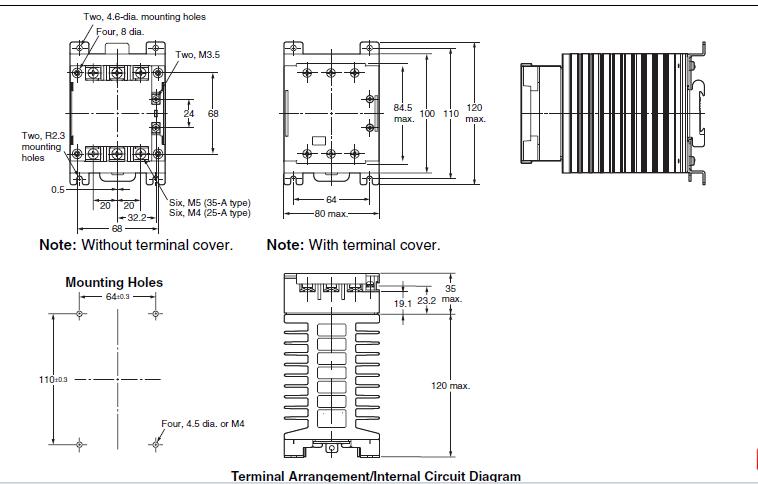

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3PE-225B DC12-24 |
Omron Industrial |
Solid State Relays w/Phototriac Coupler 25A, 100-240VAC |
Data Sheet |
|
|
||||||||||||
 |
G3PE-225B-2 DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR scrw mnt2 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225B-2N DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR DIN mnt 2 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225B-3 DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR scrw mnt3 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225B-2H DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR No Ht sink 2 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225B-3H DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR No Ht sink 3 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225B-3N DC12-24 |
Omron Industrial |
Solid State Relays 25A 3-phs SSR DIN mnt 3 pl |
Data Sheet |
|
|
||||||||||||
|
G3PE-225BL DC12-24 |
Omron Industrial |
Solid State Relays Solid State Contactor |
Data Sheet |
|
|
||||||||||||
