Product Summary

The G3PC-220B-VD is a SSR. Detects failures in SSRs used for heater temperature control and simultaneously outputs alarm signals. This product supports the safe design of heater control systems, and contributes to maintenance improvements by the user.

Parametrics

G3PC-220B-VD absolute maximum ratings: (1)Rated power supply voltage: 100 to 240 VAC (50/60 Hz); (2)Operating voltage range: 75 to 264 VAC (50/60 Hz); (3)Current consumption: 15 mA AC max. (at 200 VAC); (4)Ambient temperature Operating: -20 to 60°C, Storage: -30 to 70°C.

Features

G3PC-220B-VD features: (1)Main detection items: SSR short-circuits and SSR open-circuits; (2)Alarm output possible to NPN/PNP-input devices; (3)The failure-detection function is built-in and power is supplied from the main circuit power supply making wiring simple; (4)Slim design (width: 22.5 mm)incorporating radiator; (5)In addition to screw mounting, DIN track mounting is also possible; (6)Conforms to international standards (IEC, UL, and CSA).

Diagrams

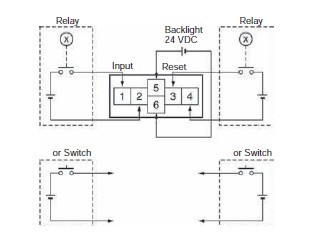

G3PC-220B-VD pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G3PC-220B-VD DC12-24
G3PC-220B-VD DC12-24

Omron Industrial

Solid State Relays SOLID STATE RELAY W/ DETECTOR

Data Sheet

0-1: $108.07
1-10: $100.96
10-25: $98.12
25-50: $95.99
