Product Summary
The G3PB-225B-VD is a Compact, Slim-profile SSR with Heat Sink, Offering Heater Control for 480-VAC Rated Loads.
Parametrics
G3PB-225B-VD absolute maximum ratings: (1)Rated Load Power Supply Voltage: 240 VAC; (2)Rated input voltage: 12 to 24 VDC; (3)Operating voltage range: 9.6 to 30 VDC; (4)Rated input current: 7 mA max.; (5)Must operate voltage: 9.6 VDC max.; (6)Must release voltage: 1 VDC min.; (7)Rated load voltage: 100 to 240 VAC (50/60 Hz); (8)Load voltage range: 75 to 264 VAC (50/60 Hz); (9)Applicable load current: 0.1 to 25 A (at 40℃); (10)Inrush current resistance (peak value): 220 A (60 Hz, 1 cycle); (11)Permissible I2t (half 60-Hz wave): 260 A2s; (12)Applicable load (with Class-1 AC resistive load): 5 kW (at 200 VAC).
Features
G3PB-225B-VD features: (1)producet discontinuation: no RoHS conformance; (2)recommended replacement: RoHS conformance; (3)Compact design achieved by optimizing heat sink shape; (4)DIN track mounting possible in addition to screw mounting; (5)Conforms to CE Marking, EN (VDE approval), UL, CSA, and VDE standards (UL pending for 480 V series).

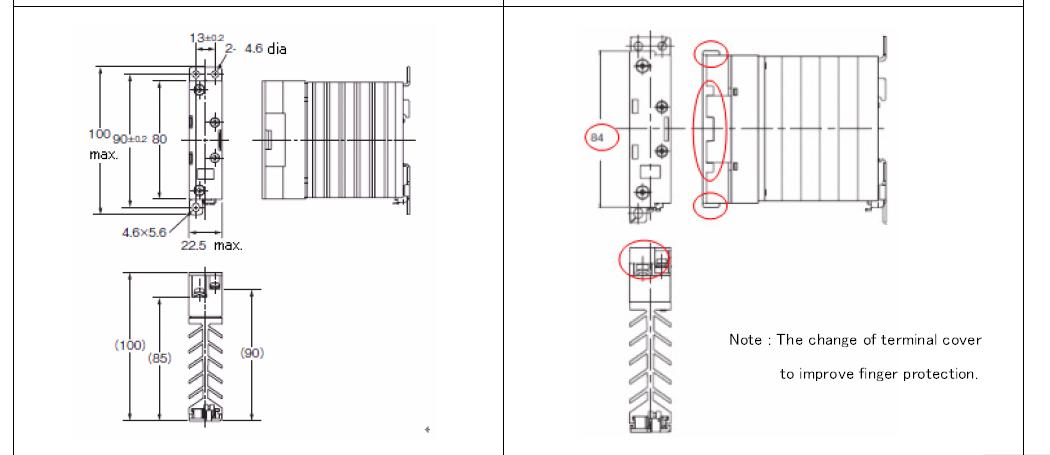

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

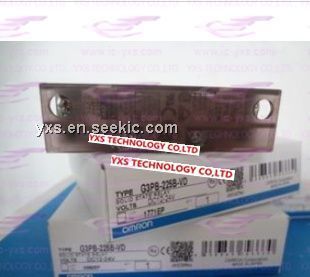

 G3PB-225B-VD DC12-24 |
|
RELAY SSR SPST 25A 24VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
G3PB-215B-2H-VD DC12-24 |
Omron Industrial |
Solid State Relays Solid State Contactor |
Data Sheet |
Negotiable |
|
||||
|
G3PB-215B-2N-VD DC12-24 |
Omron Industrial |
Solid State Relays 3-PHSE 2 WIRE SLD ST ATE RLY 15 |
Data Sheet |
Negotiable |
|
||||
|
G3PB-215B-2-VD DC12-24 |
Omron Industrial |
Solid State Relays SOLID STATE CONTACTOR |
Data Sheet |
Negotiable |
|
||||
|
G3PB-215B-3H-VD DC12-24 |
|
RELAY SSR 3PH 15A 24VDC |
Data Sheet |
Negotiable |
|
||||
|
G3PB-215B-3H-VDDC12-24 |
Omron Industrial |
Solid State Relays SOLID STATE CONTACTOR |
Data Sheet |
Negotiable |
|
||||
|
G3PB-215B-3N-VD |
Omron Industrial |
Solid State Relays 3-PHASE SOLID STATE REALY 15 A |
Data Sheet |
Negotiable |
|
||||
