Product Summary

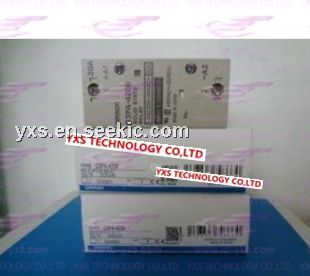

The G3PA-420B is a kind of Single Phase SSR with Built-in Heat Sinks.

Parametrics

G3PA-420B absolute maximum ratings: (1)Circuit: SPST-NO (1 Form A); (2)Output Type: AC, Zero Cross; (3)Load Current: 20A; (4)Voltage - Input: 4 ~ 30VDC; (5)Voltage - Load: 19 ~ 264 V; (6)Mounting Type: DIN Rail; (7)Termination Style: Screw Terminal.

Features

G3PA-420B features: (1)Built-in heat sink increases service life and reliability for frequently cycling circuits; (2)Operation indicator turns on when control power is applied DIN rail mount; (3)Relays with replaceable triac output cartridge (G3PA) simplifies maintenance; (4)Built-in linking brackets for dense side-by-side mounting (G3PA); (5)Conforms to international safety standards: UL508 File No. E64562; CSA C22.2 (No. 14, No. 950) File No. LR35535; EN60950 File No. 5915UG.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G3PA-420B-VD DC12-24
G3PA-420B-VD DC12-24

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $91.97
1-25: $84.73
25-50: $81.95
G3PA-420B-VD-2 DC12-24
G3PA-420B-VD-2 DC12-24


RELAY SSR SPST 20A 24VDC DIN MT

Data Sheet

0-1: $142.20
G3PA-420B-VD-2DC12-24
G3PA-420B-VD-2DC12-24

Omron Industrial

Solid State Relays 12-24 IN 180-528 OUT

Data Sheet

0-1: $86.71
1-25: $84.07
25-50: $79.87
G3PA-420B-VD-7 DC12-24
G3PA-420B-VD-7 DC12-24


RELAY SSR THIN 400VAC 20A SCREW

Data Sheet

0-1: $127.98
