Product Summary

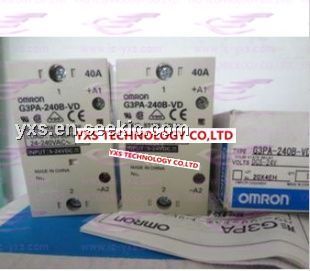

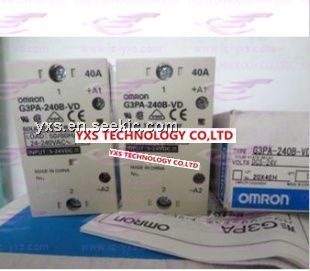

The G3PA-240B-VD is a Solid State Relay which is the Extremely Thin Relay Integrated with Heat Sinks.
Parametrics
G3PA-240B-VD absolute maximum ratings: (1)Carry current: 40 A; (2)Load voltage range: 19 to 264 VAC; (3)Rated Input voltage: 5 to 24 VDC; (4)Operating Voltage range: 4 to 30 VDC; (5)Input current impedance: 7 mA max.; (6)Must operate voltage: 4 VDC max.; (7)Must release voltage: 1 VDC min.; (8)Load current: 0.5 to 40 A; (9)Inrush current: 440 A (60 Hz, 1 cycle).
Features
G3PA-240B-VD features: (1)Downsizing achieved through optimum design of heat sink; (2)Mounting possible via screws or via DIN track; (3)Close mounting possible for linking terminals; (4)Applicable with 3-phase loads; (5)Replaceable power element cartridges; (6)Complies with VDE 0160 (finger protection), with a dielectric strength of 4,000 V between input and load; (7)Complies with VDE 0805, IEC 950; (8)Certified by UL, CSA, and VDE (reinforced insulation).

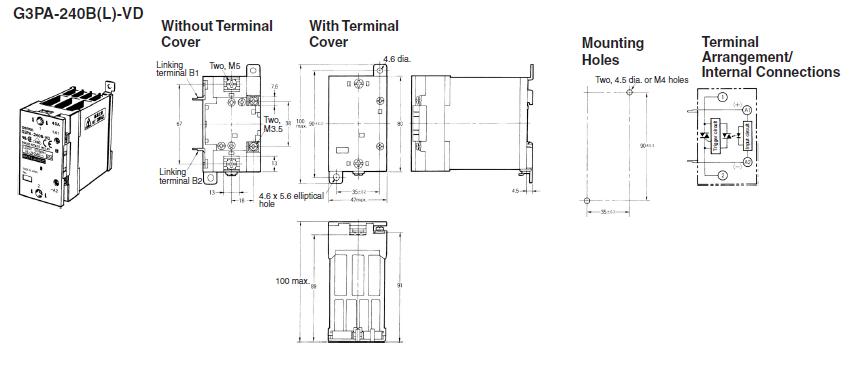

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3PA-240B-VD DC5-24 |
Omron Industrial |
Solid State Relays SOLID STATE RELAY W/VDE PHOTORIAC |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
 |
G3PA-(VD) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
G3PA-210BL-VD DC5-24 |
|
RELAY SSR 24-240VAC 10A SCREW |
Data Sheet |
|
|
||||||||||||||||||
|
G3PA-210B-VD AC24 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||||||||
 |
G3PA-210B-VD DC5-24 |
|
RELAY SSR 10A 24-240VAC DIN |
Data Sheet |
|
|
||||||||||||||||||
|
G3PA-210B-VD-DC5-24 |
Omron Industrial |
Solid State Relays 5-24 VDC 10A |
Data Sheet |
|
|
||||||||||||||||||
|
G3PA-220B-VD AC24 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||||||||
