Product Summary

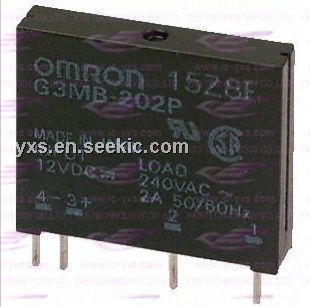

The G3MB-202P-12V is a kind of Low cost Subminiature PCB mounting 2 amp Single in-line package (SIP) SSR.
Parametrics
G3MB-202P-12V absolute maximum ratings: (1)Release time: 1/2 of load power source cycle + 1 ms max; (2)Output ON voltage drop: 160 V (RMS) max; (3)Leakage current: 150 mA at 200 VAC; (4)Junction temperature (Tj): 125°C (257°F) max; (5)Insulation resistance: 1,000 MΩ min at 500 VDC; (6)Dielectric strength: 2500 VAC, 50/60 Hz for 1 minute.
Features
G3MB-202P-12V features: (1)Bottom is approximately 3 times smaller than G3M; (2)Low cost IP package switches up to 2A loads; (3)Built in Snubber circuit and input resistor as option; (4)Two footprints available for design flexibility; (5)The G3MB-202PEG-4-DC20MA crosses directly to the Motorola M0C2A-60 series power triac.
Diagrams
