Product Summary

The G3F-203S is a kind of Solid State Relay.

Parametrics

G3F-203S specifications: (1)Output ON voltage drop: 1.6 V (RMS) max.; (2)Insulation resistance: 100 MΩ min. (at 500 VDC); (3)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min; (4)Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude; (5)Shock resistance Destruction: 1,000 m/s2; (6)Ambient temperature Operating: –30°C to 80°C (with no icing or condensation); Storage: –30°C to 100°C.

Features

G3F-203S features: (1)Shape-compatible with mechanical relays; (2)Certified by UL, CSA, and VDE (model numbers with a suffix of -VD; (3)Socket type, same size as MY Power Relays; (4)Operation indicator provided to confirm input (model numbers with N before the suffix).

Diagrams

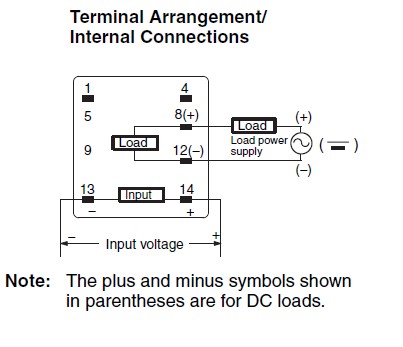

G3F-203S circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G3F-203S-DC3-28
G3F-203S-DC3-28

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $22.79
1-25: $22.15
25-50: $21.50
50-100: $20.84
G3F-203SL DC24
G3F-203SL DC24

Omron Industrial

Solid State Relays SSR

Data Sheet

0-1: $17.93
1-25: $17.41
25-50: $16.90
50-100: $16.36
G3F-203SLN DC24
G3F-203SLN DC24

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $21.18
1-25: $20.57
25-50: $19.97
50-100: $19.36
G3F-203SN DC5-24
G3F-203SN DC5-24

Omron Industrial

Solid State Relays SOLID STATE RELAY

Data Sheet

0-1: $22.29
1-25: $21.66
25-50: $21.02
50-100: $20.38
G3F-203SN-VD DC5-24
G3F-203SN-VD DC5-24


RELAY SSR 200V 3A 5-24VDC

Data Sheet

0-1: $26.25
