Product Summary

The G32A-EA is a cycle control unit. And it can be used in (1)Electric furnaces; (2)Thermostats; (3)Food-processing machinery; (4)Drying machinery; (5)Molding equipment; (6)Heating devices; (7)Other applications requiring high-precision temperature control.

Parametrics

G32A-EA absolute maximum ratings: (1)Power supply voltage range: 75 to 264 VAC; (2)Dielectric strength: 1,500 VAC, 50/60 Hz for 1 minute (between AC power supply and input/output terminals); (3)Vibration resistance: 10 to 55 Hz; (4)Storage temperature: -30 to 100°C (with no icing or condensation); (5)Ambient operating temperature: -30 to 80°C (with no icing or condensation); (6)Ambient operating humidity: 45% to 85%; (7)Weight: Approx. 100g.

Features

G32A-EA features: (1)Uses cycle control to achieve power control with little noise; (2)Used in combination with the G3PA SSR to connect to single- and three-phase loads; (3)Three types of input method available: Internal adjuster, external adjuster, or DC signals from 4 to 20 mA; (4)Streamline design. Both DIN-track mounting and screw mounting possible; (5)Uses linking terminals for close mounting with G3PA SSR; (6)Built-in isolation transformer; (7)Power supply range: 100 to 240 V.

Diagrams

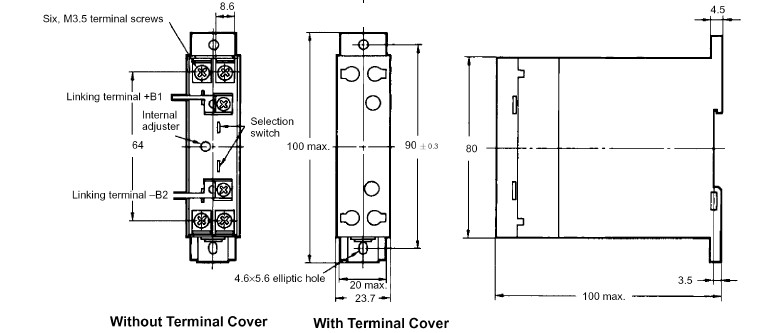

G32A-EA dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G32A-EA AC100-240
G32A-EA AC100-240

Omron Industrial

Solid State Relays CYCLE CONTROL UNIT

Data Sheet

0-1: $104.47
1-10: $97.59
10-25: $94.49
25-50: $92.78
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G32A-A10-VD DC5-24
G32A-A10-VD DC5-24

Omron Industrial

Solid State Relays POWR CARTRIDGE W/VDE 10A 524 VDC

Data Sheet

0-1: $26.79
1-25: $25.85
25-50: $25.52
50-100: $24.88
G32A-A20-VD DC5-24
G32A-A20-VD DC5-24

Omron Industrial

Solid State Relays POWR CARTRIDGE W/VDE 20A 524VDC

Data Sheet

0-1: $30.41
1-25: $28.45
25-50: $26.33
50-100: $25.20
G32A-A40-VD DC5-24
G32A-A40-VD DC5-24

Omron Industrial

Solid State Relays PWR CARTRIDGE W/VDE

Data Sheet

0-1: $48.46
1-25: $46.92
25-50: $46.06
50-100: $44.36
G32A-A420-VD DC12-24
G32A-A420-VD DC12-24

Omron Industrial

Solid State Relays SSR REPLACEMENT CARTRIDGE

Data Sheet

0-1: $84.13
1-25: $81.46
25-50: $79.98
G32A-A420-VD-2 DC12-24
G32A-A420-VD-2 DC12-24

Omron Industrial

Solid State Relays Power Element C artridge

Data Sheet

0-1: $82.85
1-10: $77.40
10-25: $74.95
25-50: $73.58
G32A-A430-VD DC12-24
G32A-A430-VD DC12-24

Omron Industrial

Solid State Relays S S Relay

Data Sheet

0-1: $136.89
1-10: $127.88
10-25: $123.83
25-50: $121.57
