Product Summary
The F3SP-B1P is a safety light curtain/multi-beam safety sensor.
Parametrics
F3SP-B1P absolute maximum ratings: (1)Lens diameter Diameter: 9 mm; (2)Operating range: 0.2 to 10.0 m; (3)Startup waiting time: 1 s max.; (4)Power supply voltage (Vs): 24 VDC ±10% (ripple p-p 10% max.); (5)Insulation resistance: 20 MΩ min. (at 500 VDC); (6)Dielectric strength: 1000 VAC 50/60 Hz 1 min.; (7)Degree of protection IEC Standard IP65.
Features
F3SP-B1P features: (1)Lineup includes Type-4 Sensors (F3SN-A/F3SH-A) and Type-2 Sensors (F3SN-B) with IEC, EN, and JIS standard certification; (2)USA UL compliance for applications for the USA or Canada; (3)Protective height equals the Sensor length to perfectly meet user needs; (4)Protective height: 189 to 1,822 mm; (5)Operating range: 7 or 10 m; (6)Setting Console enabling setting parameters for any model; (7)LED bar for beam alignment or easy confirmation in error mode; (8)A complete lineup of accessories.

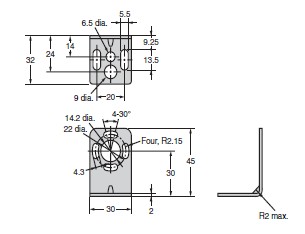

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 F3SP-B1P |
Omron Industrial |
Safety Light Curtains 3NO+1NC F3SN/F3SH USE W/ SAFETY CURTN |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
F3SP-B1P |
Omron Industrial |
Safety Light Curtains 3NO+1NC F3SN/F3SH USE W/ SAFETY CURTN |
Data Sheet |
Negotiable |
|
||||
