Product Summary
The ET2-B3M1S is a kind of automotive relay.
Parametrics
ET2-B3M1S absolute maximum ratings: (1)Contact Form: 1 form c × 2 [H Bridge Type]; (2)Contact Material: Silver oxide complex alloy; (3)Contact Resistance: 4 mΩ typical (measured at 7 A) initial; (4)Contact Switching Voltage: 16 Vdc max. 5 Vdc min.; (5)Contact Switching Current: 25 A max. (at 16 Vdc); (6)Nominal Operate Power: 640 mW; (7)Insulation Resistance: 100 MΩ min. at 500 Vdc; (8)Breakdown Voltage: 500 Vac min. for 1 minute.
Features
ET2-B3M1S features: (1)Twin relay for motor and selenoid reversible control; (2)50% less relay volume than conventional relay (EP2 Series); (3)75% less relay space than conventional relay (EP2 Series); (4)70% less relay height than conventional relay (EP2 Sereis); (5)50% less relay weight than conventional relay (EP2 Sereis); (6)Contact switching current of 25A max.; (7)High performance and productivity by unique symmetrical structure; (8)Flux tight housing; (9)Delivered in stick-tube for automatic insertion machine; (10)Washable type available.

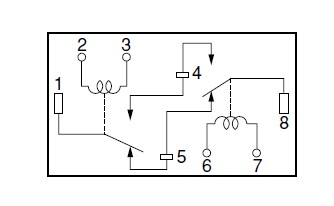

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ET2-B3M1S |
NEC |
General Purpose / Industrial Relays 1 FORM C X2 SEALED |
Data Sheet |
|
|
||||||||||||
