Product Summary

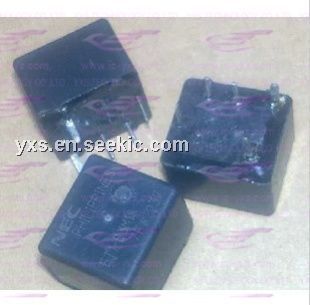

The ET1-B3M1S is an automotive relay.
Parametrics
ET1-B3M1S absolute maximum ratings: (1)nominal voltage: 12Vdc; (2)coil resistance: 225 Ω ± 10%; (3)nominal current: 53.3mA; (4)must operate voltage: 6.5Vdc; (5)must release voltage: 0.9Vdc; (6)nominal operate power: 0.64W.
Features
ET1-B3M1S features: (1)50% less relay volume than conventional relay (EP1 Series); (2)75% less relay space than conventional relay (EP1 Series); (3)70% less relay height than conventional relay (EP1 Sereis); (4)50% less relay weight than conventional relay (EP1 Sereis); (5)Contact switching current of 25A max.; (6)Flux tight housing; (7)Delivered in stick-tube for automatic insertion machine; (8)Washable type available.

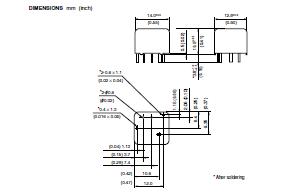

Diagrams

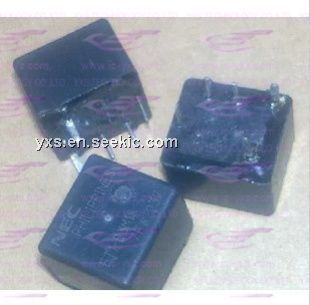

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ET1-B3M1S |
NEC |
General Purpose / Industrial Relays 1 FORM C SEALED |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ET1-B3M1S |
NEC |
General Purpose / Industrial Relays 1 FORM C SEALED |
Data Sheet |
|
|
||||||||||||
