Product Summary

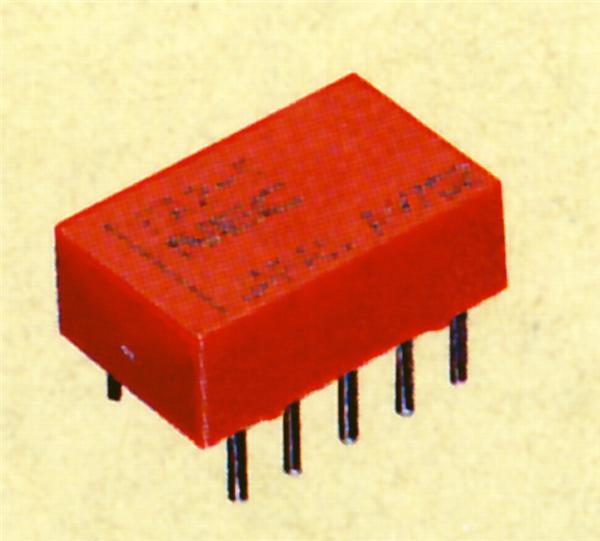

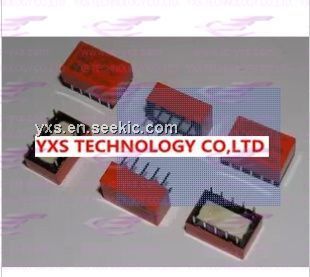

The EA2-5 is designed as a miniature signal relay. This device has reduced package size and power consumption to other NEC Conventional relays. Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the efficient magnetic circuit And it can be used in electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment.
Parametrics
EA2-5 absolute maximum ratings: (1)Contact form: 2 Form c; (2)Contact material: Silver alloy with gold alloy overlay; (3)Minimum contact ratings: 10 mVdc, 10 μA; (4)Initial Contact Resistance: 50 mΩ typ. (Initial); (5)Operate Time (Excluding Bounce): Approx. 2 ms; (6)Release Time (Excluding Bounce): Approx. 1 ms without diode; (7)Insulation Resistance: 1000 MΩ at 500 Vdc.
Features
EA2-5 features: (1)Low power consumption; (2)Compact and light weight; (3)2 form c contact arrangement; (4)Low magnetic arrangement; (5)Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant; (6)Tube packaging; (7)UL recognized (E73266), CAS certified (LR46266).

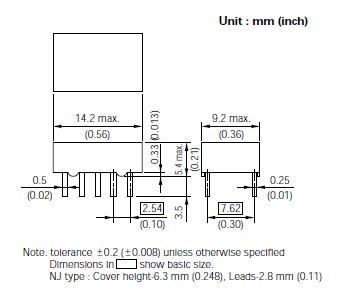

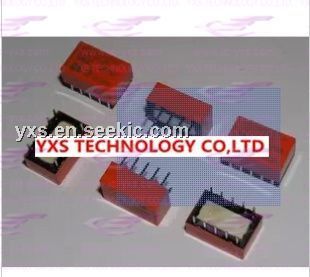

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() EA2-5NJ |
![]() NEC |
![]() Low Signal Relays - PCB COIL 5VDC NON-LATCH |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() EA2-5NU |
![]() NEC |
![]() Low Signal Relays - PCB DPDT 5VDC 1A |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() EA2-5SNJ |
![]() NEC |
![]() Low Signal Relays - PCB 5VDC SINGLE LATCH |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() EA2-5TNJ |
![]() NEC |
![]() Low Signal Relays - PCB 5VDC DOUBLE LATCH |
![]() Data Sheet |
![]()
|
|
