Product Summary

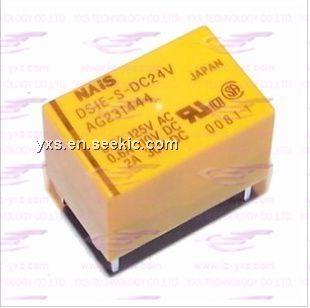

The DS1E-M-DC24V is a highly sensitive 1500 V FCC surge withstanding miniature relay. Applications are (1)Telecommunication equipment; (2)Office equipment; (3)Computer peripherals; (4)Security equipment; (5)Measuring instrumentation.

Parametrics

DS1E-M-DC24V absolute maximum ratings: (1)Nominal voltage: 24 VDC; (2)Pick-up voltage, (max.): 16.8 VDC; (3)Drop-out voltage, (min.): 2.4 VDC; (4)Coil resistance, (±10%): 1440 Ω; (5)Maximum allowable, (at 50°C 122°F): 28.8 VDC.

Features

DS1E-M-DC24V features: (1)High sensitivity: 200 mW pick-up power 100 mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts 1,000 V AC between open contacts; (5)DIP-1C type can be used with 14 pin IC socket 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets; (6)Gold-cap silver palladium types available for 2 Form C type; (7)Bifurcated contacts are standard.

Diagrams

DS1E-M-DC24V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS1E-M-DC24V
DS1E-M-DC24V
Panasonic Electric Works
Low Signal Relays - PCB 2A 24VDC SPDT NON-LATCHING
Data Sheet
0-1: $3.08
1-25: $2.89
25-50: $2.57
50-100: $2.24
DS1E-M-DC24V-R
DS1E-M-DC24V-R
Panasonic Electric Works
Low Signal Relays - PCB 1 Form C, 24VDC 1 Form C 400mW Type
Data Sheet
0-1: $3.37
1-25: $3.09
25-50: $2.76
50-100: $2.35
DS1E-M-DC24V-TB
DS1E-M-DC24V-TB
Panasonic Electric Works
Low Signal Relays - PCB 24VDC 400MW DIP RELAY MINI
Data Sheet
0-1: $3.37
1-25: $3.09
25-50: $2.76
50-100: $2.35
