Product Summary

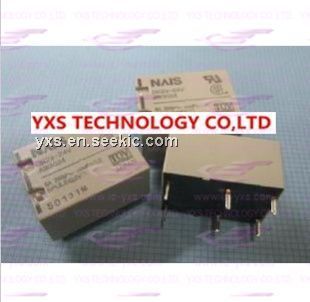

The DK2A-5V is a miniature power relay. Applications are (1)Switching power supply; (2)Power switching for various OA equipment; (3)Control or driving relays for industrial machines (robotics, numerical control machines, etc.); (4)Output relays for programmable logic controllers, temperature controllers, timers and so on; (5)Home appliances.

Parametrics

DK2A-5V absolute maximum ratings: (1)Breakdown voltage: 4,000 Vrms (Except the portion between coil terminals); (2)Insulation resistance: Min. 1,000 mW (at 500 V DC); (3)Heat resistance: 150°C (for 1 hour); (4)Max. continuous current: 8 A; (5)Detection current: 10 mA.

Features

DK2A-5V features: (1)Large capacity in small size: 10 A 250 V AC (1a); (2)High sensitivity: 200 mW nominal operating power; (3)High breakdown voltage 4,000 Vrms between contacts and coil 1,000 Vrms between open contacts Meeting FCC Part 68; (4)Sealed construction; (5)Latching types available.

Diagrams

DK2A-5V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DK2A-5V
DK2A-5V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 5VDC DPST-NO
Data Sheet
0-1: $5.72
1-25: $5.55
25-50: $5.38
50-100: $5.01
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DK2A-12V
DK2A-12V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 12VDC DPST-NO PCB
Data Sheet
0-1: $7.65
1-25: $7.03
25-50: $6.25
50-100: $5.30
DK2A-24V
DK2A-24V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 24VDC DPST-NO
Data Sheet
0-1: $7.65
1-25: $6.92
25-50: $6.25
50-100: $5.30
DK2A-L2-12V
DK2A-L2-12V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 12VDC DPST-NO 2 COIL LATCHING PCB
Data Sheet
0-1: $8.07
1-25: $7.41
25-50: $6.59
50-100: $5.60
DK2A-5V
DK2A-5V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 5VDC DPST-NO
Data Sheet
0-1: $5.72
1-25: $5.55
25-50: $5.38
50-100: $5.01
DK2a-6V
DK2a-6V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A, 6VDC 2 Form A
Data Sheet
0-1: $7.99
1-25: $7.34
25-50: $6.53
50-100: $5.54
DK2a-L2-24V
DK2a-L2-24V
Panasonic Electric Works
General Purpose / Industrial Relays 2 Form A, 24VDC 2 Form A 10A 250VAC
Data Sheet
0-1: $9.08
1-25: $8.32
25-50: $7.43
50-100: $6.31
