Product Summary

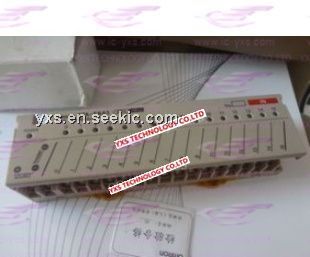

The B7A-T6A1 is a kind of Transistor I/O Link Module.

Parametrics

B7A-T6A1 specifications: (1)Communication method: Unidirectional, time-division multiplex; (2)Operating voltage range: 12 to 24 VDC (10.8 to 26.4 VDC); (3)Insulation resistance: 100 MW min. at 500 V between each terminal and external parts; (4)Dielectric strength: 1,000 VAC, 50/60 Hz for 1 min between each terminal and external parts; (5)Noise immunity : Noise level: 1.5 kV; pulse width: 100 ns to 1 ms (on transmission line due to coupling); (6)Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude; (7)Shock resistance: 300 m/s2 (approx. 30G).

Features

B7A-T6A1 features: (1)Transmit 16 input signals over just 2 wires (3 wires if only one terminal has a power supply); (2)Normal I/O delay (19.2 ms typical) or short I/O delay (3 ms typical) models; (3)Output models offer Hold or Load Off options for handling transmission errors; (4)Compact B7AS measures 30% shorter than conventional 16-point blocks; (5)Printed circuit board models available.

Diagrams

B7A-T6A1 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

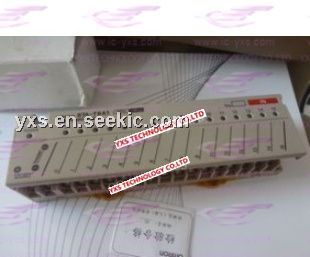

B7A-T6A1
B7A-T6A1

TERM BLOCK PLC 16POS NPN INPUT
Data Sheet
0-1: $126.72
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
B7A-R10MC
B7A-R10MC
Omron Industrial
I/O Modules 10 PTS, NPN OUT PCB
Data Sheet
0-1: $72.97
1-5: $71.34
5-10: $68.88
10-25: $66.42
B7A-R10SC01
B7A-R10SC01

TERM BLOCK PLC 10POS OUT NPN SCR
Data Sheet
0-1: $114.84
B7A-R3A13
B7A-R3A13

ADAPTER 32POS NPN OUT HOLD
Data Sheet
0-1: $146.52
B7A-R6A52
B7A-R6A52
Omron Industrial
Terminal Block Interface Modules 16 PTS NPN OUT PCB 19.2MS
Data Sheet
0-1: $52.50
1-5: $51.33
5-10: $49.56
10-25: $47.79
B7A-T10S1
B7A-T10S1

TERM BLOCK PLC 10POS INPUT NPN
Data Sheet
0-1: $114.84
B7A-T10S3
B7A-T10S3

TERM BLOCK PLC 10POS INPUT NPN
Data Sheet
0-1: $114.84
