Product Summary

The B4SA012Z is a kind of slim profile signal relay.

Parametrics

B4SA012Z absolute maximum ratings: (1)Configuration: 2 form C; (2)Construction: Bifurcated contacts (cross-bar); (3)Material: Gold overlay silver nickel / Gold overlay silver palladium; (4)Resistance (Initial): Max. 100 mΩ at 1 A, 6 VDC; (5)Contact rating (resistive): 30VDC, 1A / 125VAC, 0.3A; (6)Max. carrying current: 2A; (7)Max. switching voltage: 250 VAC / 220VDC; (8)Max. switching power: 62.5VA / 30W; (9)Min. switching load: 0.01mA, 10mVDC.

Features

B4SA012Z features: (1)DPDT 2C; (2)Ultra miniature slim type relay for surface mounting; (3)Conforms to Bellcore & FCC part 68, and Telcordia & FCC part 68; (4)Conforms to UL1950 / CSA 950, IEC 950 / EN60950; (5)High reliable birfuracted gold overlay silver contact; (6)Low power consumption 140 mW (standard), 100 mW (latching); (7)RoHS compliant.

Diagrams

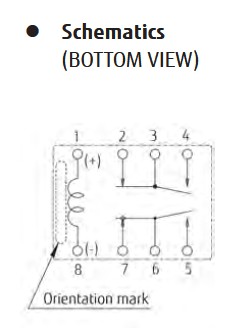

B4SA012Z circuit diagram
