Product Summary
The 61F-GP-N8H is a conductive level controller.
Parametrics
61F-GP-N8H absolute maximum ratings: (1)Supply voltage: 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated voltage; (3)Power consumption: Approx. 3.5 VA max.; (4)Control output: 1 A, 250 VAC (Inductive load: cosφ = 0.4); (5)Ambient temperature: Operating: -10°C to 55°C; (6)Ambient humidity: Operating: 45% to 85% RH; (7)Insulation resistance: 100 MΩ max. (at 500 VDC).
Features
61F-GP-N8H features: (1)Wide range of models: long-distance, high and low-sensitivity, and two-wired types available; (2)24/100/110/120/200/220/230/240 VAC operation possible; (3)Easy installation on DIN track; (4)Low-voltage (AC) electrodes; (5)Red LED operation indicator provided; (6)Conforms to EMC and LVD Directives; (7)UL/CSA approved.

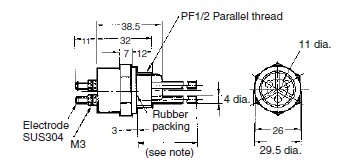

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 61F-GP-N8H AC120 |
![]() Omron Industrial |
![]() Controllers LEVEL CONTROLLER |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 61F-GP-N8H AC24 |
![]() Omron Industrial |
![]() Controllers LEVEL CONTROLLER |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 61F-GP-N8HY 110VAC |
![]() Omron Industrial |
![]() Controllers Level Controller |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 61F-GP-N8H AC240 |
![]() |
![]() LEVEL CONTROLLER |
![]() Data Sheet |
![]()
|
|
