Product Summary
The HB140WX1-100 is a color active matrix TFT LCD module using amorphous silicon TFT’s (Thin Film Transistors) as an active switching devices. This module has a 14.0 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, the HB140WX1-100 is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are LVDS interface compatible. The HB140WX1-100 is applicated for the Notebook PC (Wide type).
Parametrics
HB140WX1-100 absolute maximum ratings: (1)Power Supply Voltage VDD: -0.3 to 4.0V; (2)Logic Supply Voltage VIN: Vss-0.3 to VDD+0.3V; (3)Operating Temperature TOP: 0 to +50℃; (4)Storage Temperature TST: -20 to +60℃.
Features
HB140WX1-100 features: (1)1 Channel LVDS Interface with 1 pixel / clock; (2)Thin and light weight; (3)6-bit color depth, display 262K colors; (4)Single LED Lighting Bar. (Top side/Horizontal Direction); (5)Data enable signal mode; (6)Side Mounting Frame; (7)Green Product (RoHS & Halogen free product); (8)On board LED Driving circuit; (9)Low driving voltage and low power consumption; (10)On board EDID chip.

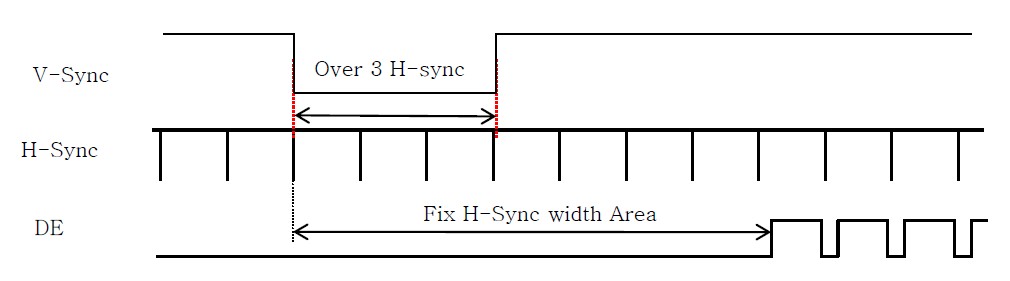

Diagrams
