Product Summary

The CLAA141WB11A is a 14" color (16：9) TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, LVDS driver ICs, control circuit and backlight. By applying 6 bit digital data, 1366×RGB (3) × 768, 262K-color images of the CLAA141WB11A are displayed on the 14" diagonal screen.

Parametrics

CLAA141WB11A absolute maximum ratings: (1)LCD Power Voltage, VCC: 0 to 4.0 V; (2)LED Driver Input Voltage, VBL+: 7 to 21 V; (3)Operation Temperature, Top: 0 to 50 ℃; (4)Storage Temperature, Tstg: -25 to 65 ℃.

Features

CLAA141WB11A features: (1)LCD Power Voltage, VCC: 3.0 to 3.6 V; (2)LCD Power Current, ICC: 280 to 350 mA; (3)Rush Current, Irush: 3 A; (4)Common Voltage, VCM: 1.125 to 1.375 V; (5)Differential Input Voltage, VID: 250 to 450 mV; (6)Threshold Voltage (HIGH), VTH: 100 mV; (7)Threshold Voltage (LOW), VTL: -100 mV.

Diagrams

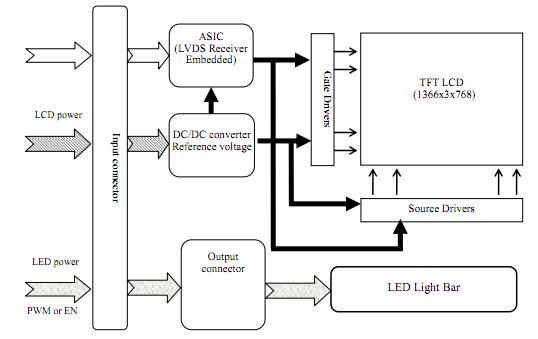

CLAA141WB11A block diagram
