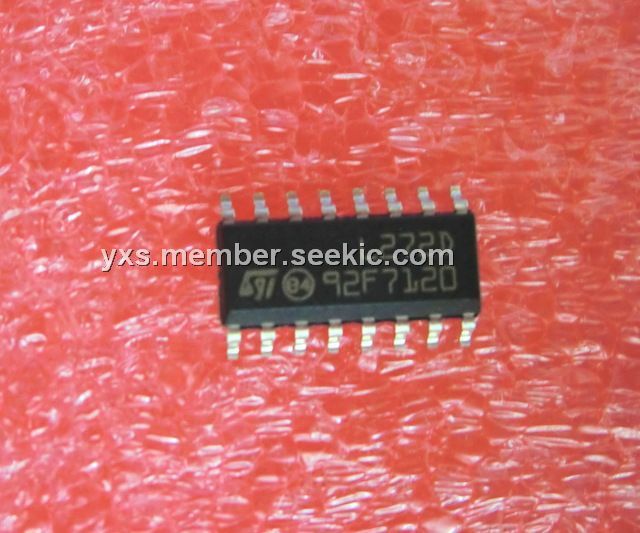

Product Summary
The l272d is a monolithic integrated circuit in Powerdip, Minidip and SO packages intended for use as power operational amplifiers in a wide range of applications including servo amplifiers and power supplies, compacts disc, VCR, etc. The high gain and high output power capability provide superior performancewhatever an operational amplifier/powerbooster combination is required.
Parametrics
l272d absolute maximum ratings: (1)Vs, Supply Voltage: 28 V; (2)Vi, Input Voltage: Vs; (3)Vi, Differential Input Voltage: ± Vs; (4)Io, DC Output Current: 1 A; (5)Ip, Peak Output Current (non repetitive): 1.5 A; (6)Ptot, Power Dissipation: 1.2W; (7)Top, Operating Temperature Range: – 40 to 85℃; (8)Tstg,Tj, Storage and Junction Temperature: – 40 to 150℃.
Features
l272d features: (1)output current to 1 A; (2)operates at lowvoltages; (3)singleor split supply; (4)large common-mode and differen-tialmode range; (5)ground compatible inputs; (6)lowsaturation voltage; (7)thermal shutdown.

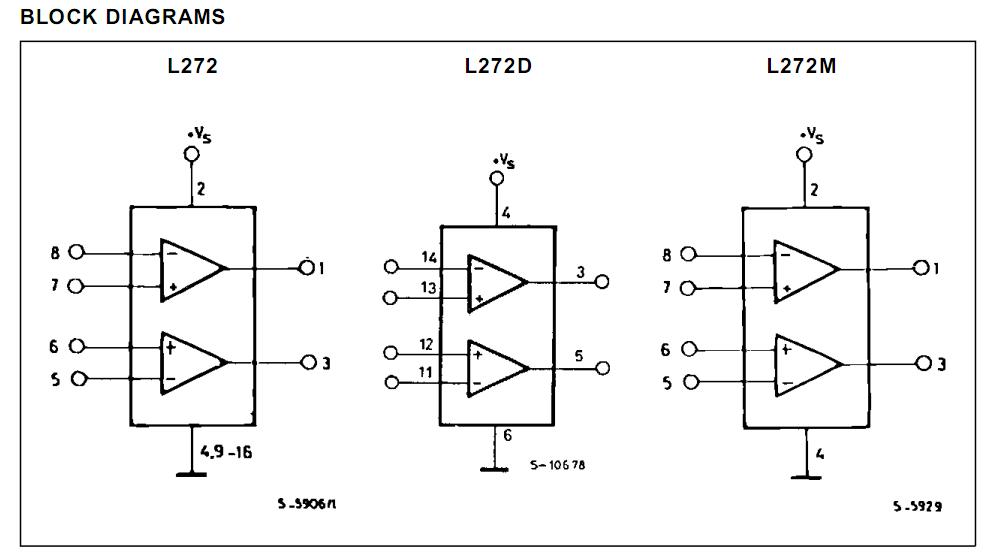

Diagrams
