Product Summary

The TS87C51RC2-MCB is a CMOS single chip 8-bit microcontroller. The TS87C51RC2-MCB retains all features of the 80C51 with extended ROM/EPROM capacity (16/32/64 Kbytes), 256 bytes of internal RAM, a 7-source , 4-level interrupt system, an on-chip oscilator and three timer/counters.

Parametrics

TS87C51RC2-MCB absolute maximum ratings: (1)C = commercial: 0℃ to 70℃; (2)I = industrial: -40℃ to 85℃; (3)Storage Temperature: -65℃ to + 150℃; (4)Voltage on VCC to VSS: -0.5 V to + 7 V; (5)Voltage on Any Pin to VSS: -0.5 V to VCC + 0.5 V; (6)Power Dissipation: 1 W.

Features

TS87C51RC2-MCB features: (1)Dual Data Pointer; (2)On-chip ROM/EPROM (16K-bytes, 32K-bytes, 64K-bytes); (3)On-chip eXpanded RAM (XRAM) (256 or 768 bytes); (4)Programmable Clock Out and Up/Down Timer/Counter 2; (5)Hardware Watchdog Timer (One-time enabled with Reset-Out); (6)2 extra 8-bit I/O ports available on RD2 with high pin count packages; (7)Asynchronous port reset.

Diagrams

TS87C51RC2-MCB diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS87C51RC2-MCB
TS87C51RC2-MCB

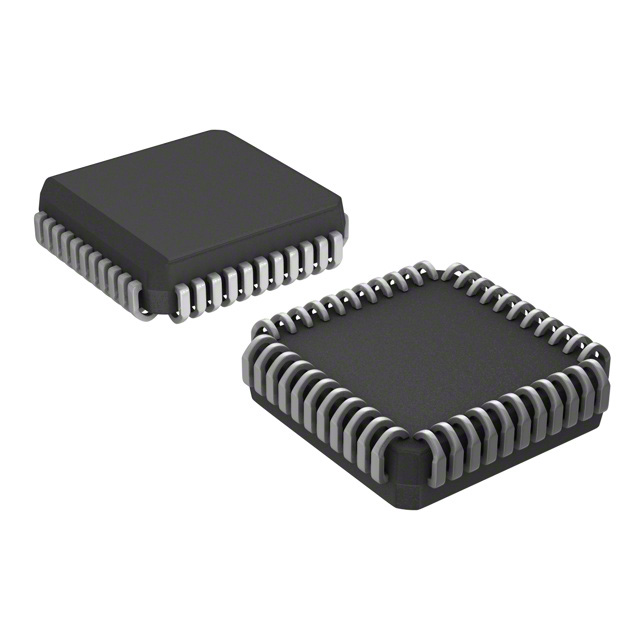

IC MCU 8BIT 32K OTP 40MHZ 44PLCC

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS87C51FA1SF76
TS87C51FA1SF76


IC MCU 8BIT 5V 16MHZ OTP 44QFP

Data Sheet

Negotiable
TS87C51FA24SF76
TS87C51FA24SF76


IC MCU 8BIT 8K OTP EXT 44-MQFP

Data Sheet

0-1: $3.63
1-10: $3.27
10-100: $2.69
100-250: $2.47
250-500: $2.25
TS87C51FB1SF76
TS87C51FB1SF76


IC MCU 8BIT 16K OTP EXT 44-MQFP

Data Sheet

Negotiable
TS87C51FCSF76
TS87C51FCSF76

Intel

IC MCU 8BIT 32K 12MHZ OTP 44MQFP

Data Sheet

Negotiable
TS87C51RA1
TS87C51RA1


IC MCU 8BIT 8K 16MHZ OTP 44-MQFP

Data Sheet

0-1: $3.88
1-10: $3.49
10-100: $2.87
100-250: $2.63
250-500: $2.40
TS87C51RA24
TS87C51RA24


IC MCU 8BIT 8K 24MHZ OTP 44-MQFP

Data Sheet

0-1: $3.88
1-10: $3.49
10-100: $2.87
100-250: $2.63
250-500: $2.40
