Product Summary
The TL1451A is a dual pulse-width-modulation control circuit. It incorporates on a single monolithic chip all the functions required in the construction of two pulse-width-modulation (PWM) control circuits. Designed primarily for power-supply control, the TL1451A contains an on-chip 2.5-V regulator, two error amplifiers, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry, and dual common-emitter output transistor circuits.
Parametrics
TL1451A absolute maximum ratings: (1)Supply voltage, VCC: 51 V; (2)Amplifier input voltage, VI: 20 V; (3)Collector output voltage, VO: 51 V; (4)Collector output current, IO: 21 mA; (5)Operating free-air temperature range, TA C suffix: –20℃ to 85℃, Q suffix:. –40℃ to 125℃, M suffix: –55℃ to 125℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TL1451A features: (1)Complete PWM Power Control Circuitry; (2)Completely Synchronized Operation; (3)Internal Undervoltage Lockout Protection; (4)Wide Supply Voltage Range; (5)Internal Short-Circuit Protection; (6)Oscillator Frequency: 500 kHz Max; (7)Variable Dead Time Provides Control Over Total Range; (8)Internal Regulator Provides a Stable 2.5-V Reference Supply; (9)Available in Q-Temp Automotive: HighRel Automotive Applications, Configuration Control/Print Support, Qualification to Automotive Standards.

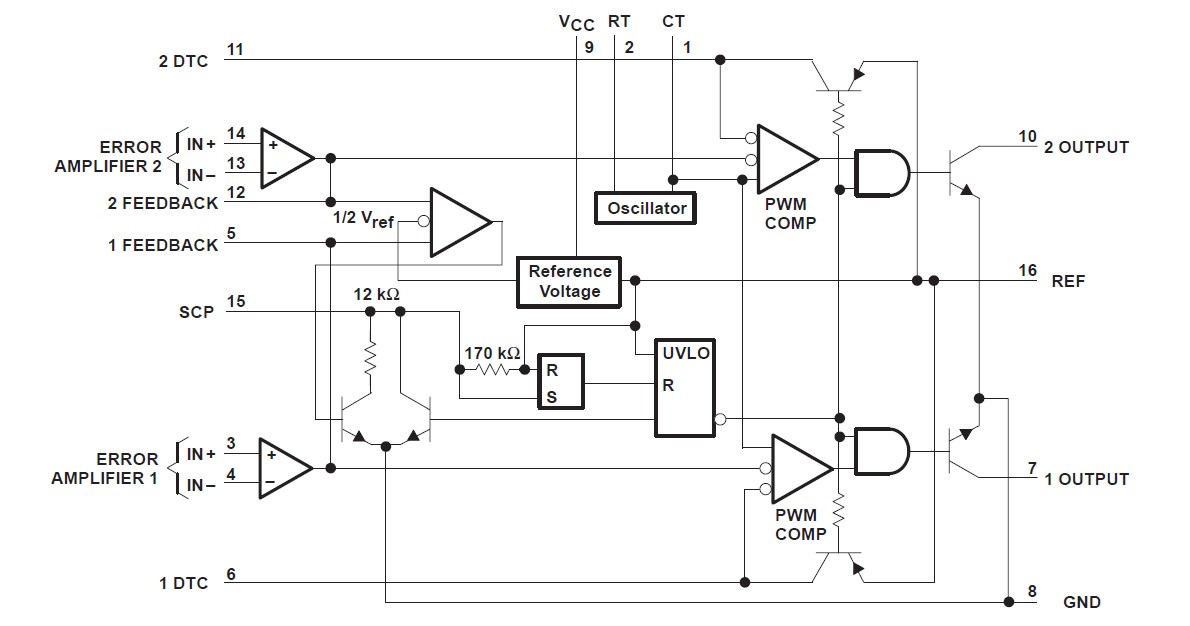

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL1451A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TL1451ACD |
Texas Instruments |
DC/DC Switching Controllers Dual ch PWM Ctlr |
Data Sheet |
|
|
||||||||||||
|
TL1451ACDBR |
Texas Instruments |
DC/DC Switching Controllers Dual ch PWM Ctlr |
Data Sheet |
|
|
||||||||||||
|
TL1451ACDBRG4 |
Texas Instruments |
DC/DC Switching Controllers Dual Ch w/Wide Input Voltage Range |
Data Sheet |
|
|
||||||||||||
|
TL1451ACDG4 |
Texas Instruments |
DC/DC Switching Controllers Dual Ch w/Wide Input Voltage Range |
Data Sheet |
|
|
||||||||||||
|
TL1451ACDR |
Texas Instruments |
DC/DC Switching Controllers Dual Ch w/Wide Input Voltage Range |
Data Sheet |
|
|
||||||||||||
|
TL1451ACDRG4 |
Texas Instruments |
DC/DC Switching Controllers Dual Ch w/Wide Input Voltage Range |
Data Sheet |
|
|
||||||||||||
|
TL1451ACN |
Texas Instruments |
DC/DC Switching Controllers Dual ch PWM Ctlr |
Data Sheet |
|
|
||||||||||||
