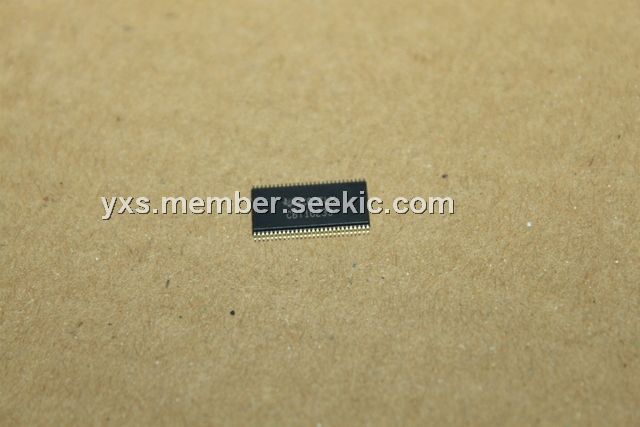

Product Summary

The SN74CBT16233DGGR is a 16-bit 1-of-2 FET multiplexer/demultiplexer used in applications in which two separate data paths must be multiplexed onto, or demultiplexed from, a single path. This device SN74CBT16233DGGR can be used for memory interleaving, where two different banks of memory need to be addressed simultaneously. The device SN74CBT16233DGGR can be used as two 8-bit to 16-bit multiplexers or as one 16-bit to 32-bit multiplexer.

Parametrics

SN74CBT16233DGGR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to VCC + 0.5 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI < 0): –50 mA; (5)Package thermal impedance, θJA: 64℃/W; (6)Storage temperature range, Tstg: –65 to 150℃.

Features

SN74CBT16233DGGR features: (1)Member of the Texas Instruments Widebus Family; (2)5-Ω Switch Connection Between Two Ports; (3)TTL-Compatible Input Levels.

Diagrams

SN74CBT16233DGGR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74CBT16233DGGR
SN74CBT16233DGGR

Texas Instruments

Multiplexer Switch ICs 16-Bit 1-of-2 FET

Data Sheet

0-1: $1.05
1-25: $0.85
25-100: $0.76
100-250: $0.68
