Product Summary

The S8020L is a half-wave unidirectional, gate-controller. Teccor offers devices with ratings of 1 A to 70 A and 200 V to 1000 V, with gate sensitivities from 10 mA to 50 mA. If gate currents in the 12 μA to 500 μA ranges are required.

Parametrics

S8020L absolute maximum ratings: (1)Voltage - Off State 800V; (2)Voltage - Gate Trigger (Vgt) (Max) 1.5V; (3)Voltage - On State (Vtm) (Max) 1.6V; (4)Current - On State (It (AV)) (Max) 12.8A; (5)Current - On State (It (RMS)) (Max) 20A; (6)Current - Gate Trigger (Igt) (Max) 30mA; (7)Current - Hold (Ih) (Max) 40mA; (8)Current - Off State (Max) 20μA; (9)Current - Non Rep. Surge 50, 60Hz (Itsm) 255A, 300A; (10)Operating Temperature -40 ~ 125℃.

Features

S8020L features: (1)RoHS Compliant; (2)Electrically-isolated package; (3)High voltage capability- 200 V to 1000 V; (4)High surge capability- up to 950 A; (5)Glass-passivated chip.

Diagrams

S8020L block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

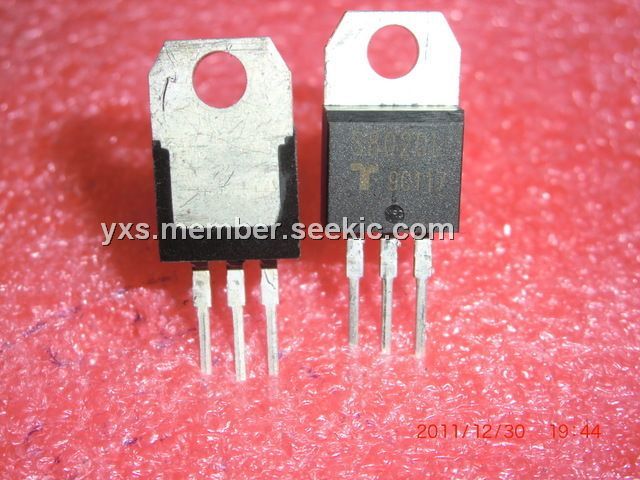

S8020L
S8020L
Littelfuse
SCRs 20A 1000V
Data Sheet
0-1: $1.18
1-10: $1.10
10-100: $0.97
100-250: $0.88
