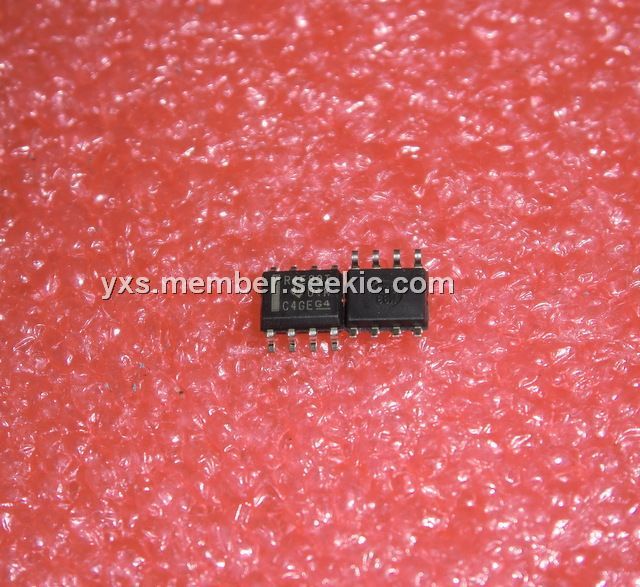

RC4580

dual operational amplifier, MSOP-8, ±18 V, ±50 mA, RC4580, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: RC4580

Brand:: Texas Instruments - TI | Pack: MSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:RC4580
US $1.00 - 3.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RC4580 is a dual operational amplifier that has been designed optimally for audio applications, such as improving tone control. It offers low noise, high gain bandwidth, low harmonic distortion, and high output current, all of which make the RC4580 ideally suited for audio electronics, such as audio preamplifiers and active filters, as well as industrial measurement equipment. When high output current is required, the RC4580 also can be used as a headphone amplifier. Due to its wide operating supply voltage, the RC4580 also can be used in low-voltage applications. The RC4580 is suitable for Applications Such As Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment.

Parametrics

RC4580 absolute maximum ratings: (1)Supply voltage, VCC+: ±18 V; (2)Input voltage (any input): ±15 V; (3)Differential input voltage, VID: ±30 V; (4)Output current: ±50 mA; (5)Package thermal impedance, θJA): 97℃/W; (6)Operating virtual junction temperature, TJ: 150℃; (7)Storage temperature range, Tstg: -60 to 125℃.

Features

RC4580 features: (1)Operating Voltage: ±2 V to ±18 V; (2)Low Noise Voltage: 0.8 μVrms (TYP); (3)Wide GBW: 12 MHz (TYP); (4)Low THD: 0.0005% (TYP); (5)Slew Rate: 5 V/μs (TYP); (6)Suitable for Applications Such As Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment; (7)Drop-In Replacement for NJM4580; (8)Pin and Function Compatible With LM833, NE5532, NJM4558/9, and NJM4560/2/5.
