Product Summary

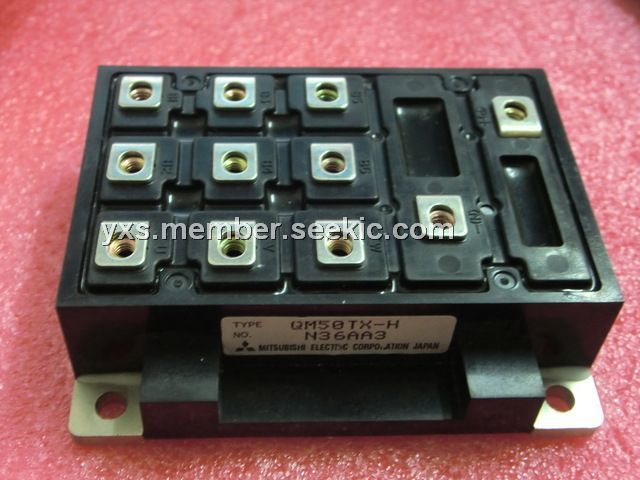

The QM50TX-H is a medium power switching use. The applications of it are AC motor controllers, UPS, DC motor controllers, NC equipment, Welders.
Parametrics
QM50TX-H absolute maximum ratings: (1)Collector-emitter voltage:600V; (2)Collector-emitter voltage:600V; (3)Collector-base voltage:600V; (4)Emitter-base voltage:7V; (5)Collector current:50A; (6)Collector reverse current:50A; (7)Collector dissipation:310W; (8)Base current:3A; (9)Surge collector reverse current:500A; (10)Junction temperature:-40℃ to +150℃; (11)Storage temperature:-40℃ to +125℃; (12)Isolation voltage:2500V.
Features
QM50TX-H features: (1)IC Collector current:50A; (2)VCEX Collector-emitter voltage:600V; (3)hFE DC current gain:75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM50TX-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM50TX-HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
