Product Summary

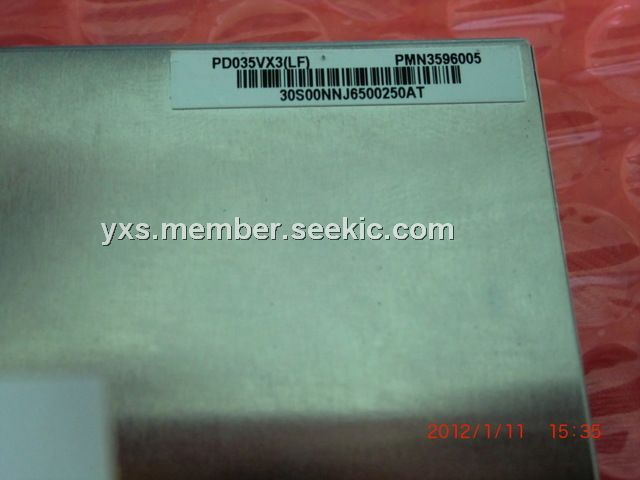

The PD035VX3 is a color TFT LCD module. The application of the device are projector and other media application which require high quality flat panel display.
Parametrics
PD035VX3 absolute maximum ratings: (1)VDD1: -0.3 to 2 V; (2)VCC: -0.3 to 5 V; (3)VDD:2: -0.5 to 12.0 V; (4)VGG -0.3 to 40.0 V; (5)VGG-VEE: - 40.0 V; (6)VEE: -20 to 0.3 V; (7)Storage Temperature, TST: -20 to 70℃; (8)Operating Temperature, TOP: 0 to 60℃.
Features
PD035VX3 features: (1)Amorphous silicon TFT LCD panel with LED B/L; (2)Module with resistive type touch panel ; (3)Pixel in stripe configuration; (4)Display Colorsj262,144 colors; (5)Optimum Viewing Directionj6 o’clock; (6)TTL transmission interface.

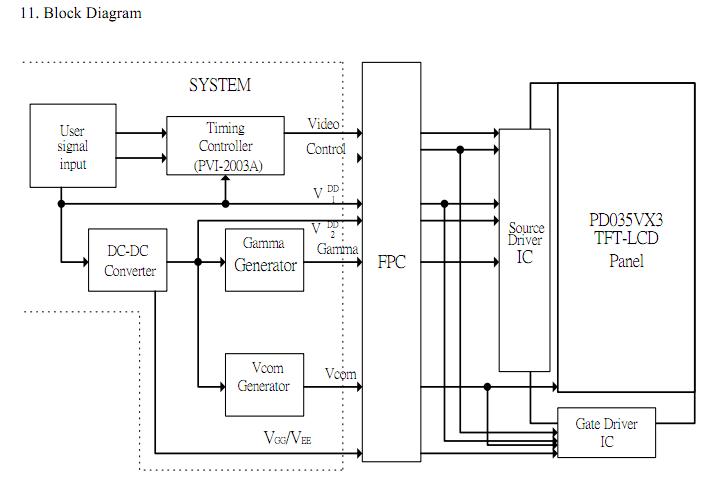

Diagrams
