Product Summary

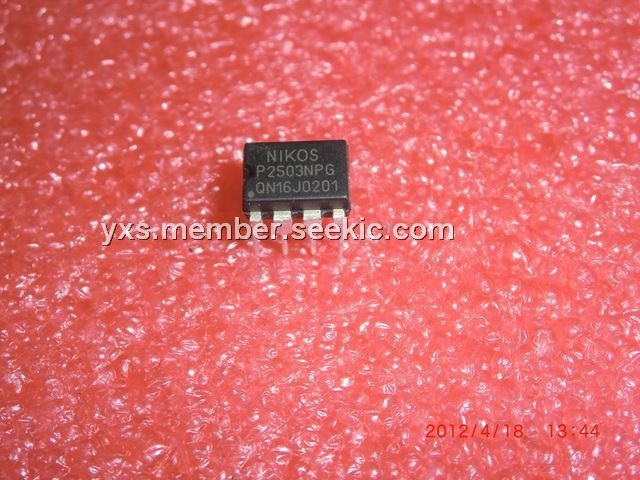

The P2503NPG is an N- & P-Channel Enhancement Mode Field Effect Transistor.

Parametrics

P2503NPG absolute maximum ratings: (1)Drain-Source Voltage VDS: 30 V; (2)Gate-Source Voltage VGS: ±20 V; (3)Continuous Drain Current ID: 7 A; (4)Pulsed Drain Current1 IDM: 20 A; (5)Avalanche Current IAS 18 A; (6)Avalanche Energy EAS 19 mJ; (7)Power Dissipation PD: 2.5 W; (8)Junction & Storage Temperature Range Tj, Tstg: -55 to 150 ℃.

Features

P2503NPG electrical characteristics: (1)Drain-Source Breakdown Voltage V(BR)DSS: 30 V; (2)Gate Threshold Voltage VGS(th): 1 V; (3)Gate-Body Leakage IGSS: ±100nA; (4)Zero Gate Voltage Drain Current IDSS: 1μA; (5)On-State Drain Current ID(ON): 20A.

Diagrams

P2503NPG block diagram

P250
P250

PROBE OSC 250MHZ X100 1.2M CABLE
Data Sheet
0-1: $26.97
P2500AA61
P2500AA61
Littelfuse
Sidacs 50A 240V
Data Sheet
Negotiable
P2500AA61L
P2500AA61L
Littelfuse
Sidacs 50A 240V
Data Sheet
0-1: $0.90
1-10: $0.86
10-100: $0.83
100-250: $0.81
P2500AA61RP
P2500AA61RP
Littelfuse
Sidacs 50A 240V
Data Sheet
0-1: $1.02
1-10: $0.98
10-100: $0.83
100-250: $0.74
P2500Q12ALRP
P2500Q12ALRP
Littelfuse

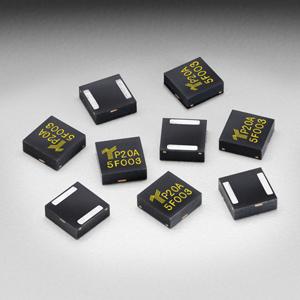

Sidacs 230V 50A QFN 3X3 2L SIDACtor Bi
