Product Summary
The OPA2652U/2K5 is a dual, low-cost, wideband voltage-feedback amplifier intended for price sensitive applications. It features a high gain bandwidth product of 200MHz on only 5.5mA/chan quiescent current. Intended for operation on ±5V supplies, the OPA2652U/2K5 will also support applications on a single supply from +6V to +12V with 140mA output current. Its classical differential input, voltage-feedback design allows wide application in active filters, integrators, transimpedance amplifiers, and differential receivers. The applications of the OPA2652U/2K5 include A/D drivers, consumer video, active filters, pulse delay circuits and low cost upgrade to the AD8056 or EL2210.
Parametrics
OPA2652U/2K5 absolute maximum ratings: (1)Supply Voltage: ±6.5V; (2)Differential Input Voltage: ±1.2V; (3)Input Voltage Range: ±VS; (4)Storage Temperature Range: –40 to +125℃; (5)Lead Temperature (SO-8): +260℃; (6)Junction Temperature (TJ): +175℃; (7)ESD Rating (Human Body Model): 2000V; (Machine Model): 200V.
Features
OPA2652U/2K5 features: (1)wideband buffer: 700MHz, G = +1; (2)wideband line driver: 200MHz, G = +2; (3)high output current: 140mA; (4)low supply current: 5.5mA/Ch; (5)ultra-small package: SOT23-8; (6)low dG/dφ: 0.05%/0.03°; (7)high slew rate: 335V/μsec; (8)supply voltage: ±3V to ±6V.

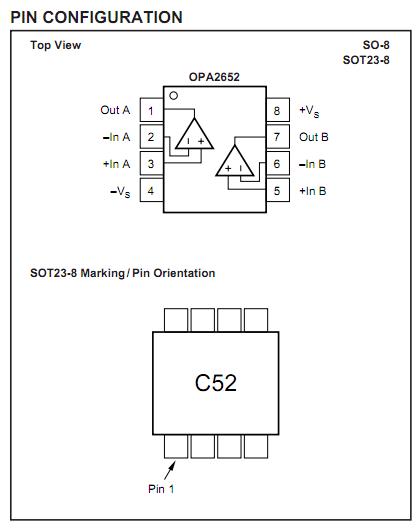

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA2652U |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz Voltage Feedback |
Data Sheet |
|
|
||||||||||||
|
OPA2652U/2K5 |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz V FeedB |
Data Sheet |
|
|
||||||||||||
|
OPA2652UG4 |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz Voltage Feedback |
Data Sheet |
|
|
||||||||||||
|
OPA2652U/2K5G4 |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz Voltage Feedback |
Data Sheet |
|
|
||||||||||||
|
OPA2652U-1/2K5G4 |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz Voltage Feedback |
Data Sheet |
Negotiable |
|
||||||||||||
|
OPA2652U-1/2K5 |
Texas Instruments |
High Speed Operational Amplifiers Dual 700MHz Voltage Feedback |
Data Sheet |
Negotiable |
|
||||||||||||
